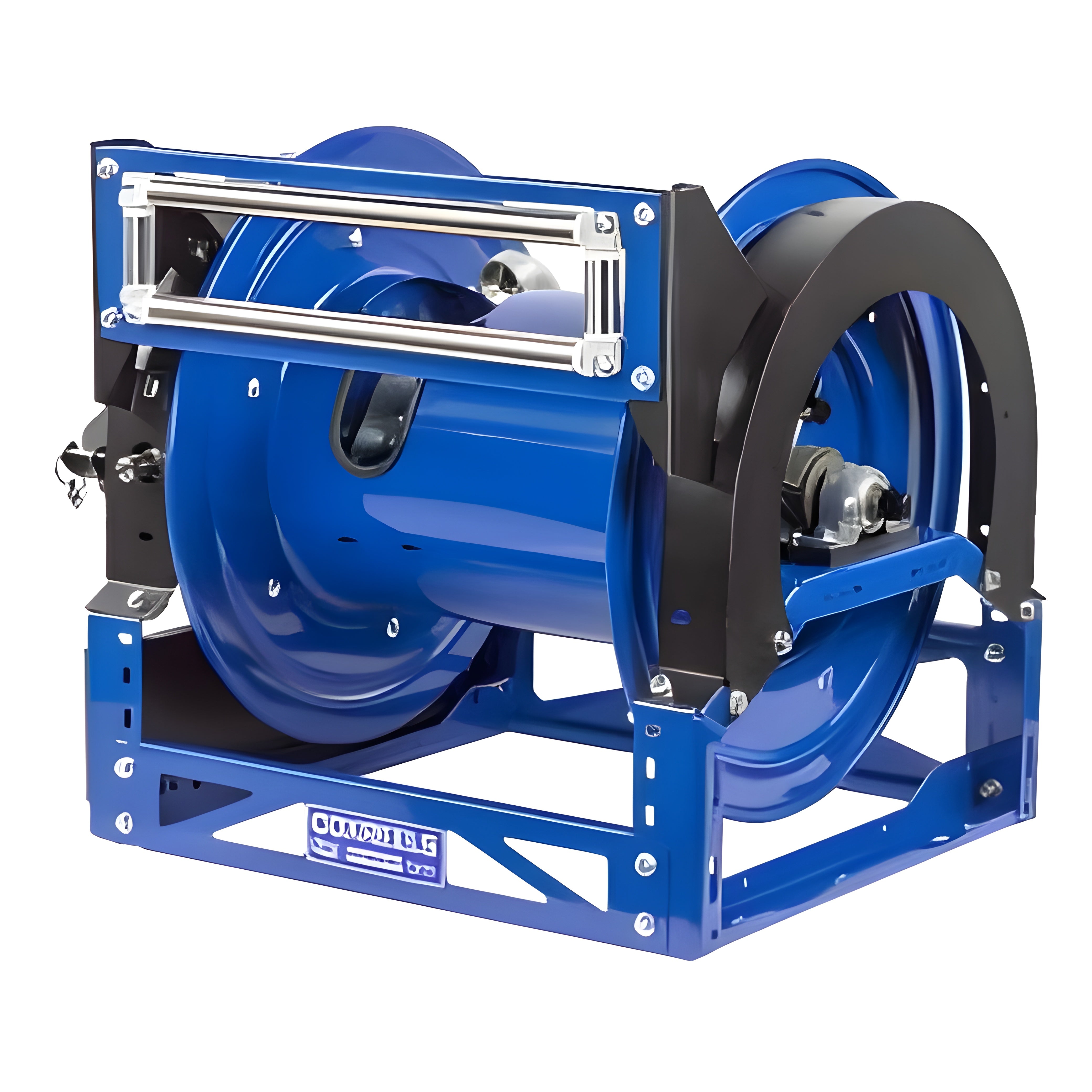

Coxreels 1600 Series Medium Pressure Hose Reels - 1660-0820

1600 Series Medium Pressure Hose Reels

COXREELS® 1600 Series features the most versatile symmetric reel design in the market today. This feature –rich reel series features nearly endless component configurations on a robust platform for any conceivable application. Targeted for the tough demands of customers requiring various dimensional choices, the series offers flexible size envelopes for any given hose capacity. The 1600 series hybrid frame offers unique accessories and upgrades which allow for application tailoring resulting in enhanced performance and usability.

Professional grade heavy duty steel construction
Rolled edges & ribbed discs provide strength & safety
Leading 2-year manufacturer's limited warranty
Made in the U.S.A. - Sold & Supported Worldwide

Features

SWIVEL - Nickel plated steel inline NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.

CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.

OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.

HYBRID FRAME - Sturdy one piece, all CNC robotically welded 12 ga steel "A" frame base, not bolted, for superior reel structure. With the strength of an "A" frame and the versatility of the a Box frame, the hybrid frame offers vertical sides for mounting and many optional features.

PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.

OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, zinc plating on steel plumbing, adjustable tension brake prevents free wheeling and front bevel geared crank for easy mechanical retraction.

Specifications

MODEL	I.D	LENGTH	HOSE	MAX PSI	SHIP WEIGHT (LBS)	OVERALL DIMENSIONS (W) (H) (L)	MOUNTING PATTERN (M) (N)	BASE (X) (Y)
1660-0820	1"	50'	No	3000	54	23.88"(W) 21.75"(H) 20"(L)	12.65"(M) 15.5"(N)	15"(X) 20.25"(Y)
1660-0824	1"	75'	No	3000	67	23.88"(W) 25.25"(H) 24"(L)	12.65"(M) 18.5"(N)	15"(X) 23.25"(Y)
1660-0828	1"	130'	No	3000	80	23.88"(W) 29.25"(H) 28"(L)	12.65"(M) 21.5"(N)	15"(X) 26.25"(Y)
1660-0924	1"	100'	No	3000	72	35.38"(W) 25.25"(H) 24"(L)	14.15"(M) 18.5"(N)	16.5"(X) 23.25"(Y)
1660-0928	1"	165'	No	3000	85	25.38"(W) 29.25"(H) 28"(L)	14.15"(M) 21.5"(N)	16.5"(X) 26.25"(Y)
1660-1120	1"	75'	No	3000	60	27.38"(W) 21.75"(H) 20"(L)	16.15"(M) 15.5"(N)	18.5"(X) 20.25"(Y)
1660-1124	1"	100'	No	3000	73	27.38"(W) 25.25"(H) 24"(L)	16.15"(M) 18.5"(N)	18.5"(X) 23.25"(Y)
1660-1128	1"	200'	No	3000	88	27.38"(W) 29.25"(H) 28"(L)	16.5"(M) 21.5"(N)	18.5"(X) 26.25"(Y)
1660-1324	1"	150'	No	3000	75	26.88"(W) 25.25"(H) 24"(L)	18.15"(M) 18.5"(N)	20.5"(X) 23.25"(Y)
1660-1328	1"	225'	No	3000	108	29.38"(W) 29.25"(H) 28"(L)	18.15"(M) 21.5"(N)	20.5"(X) 26.25"(Y)
1660-1520	1"	100'	No	3000	68	31.38"(W) 21.75"(H) 20"(L)	20.15"(M) 15.5"(N)	22.5"(X) 20.25"(Y)
1660-1524	1"	165'	No	3000	81	31.38"(W) 25.25"(H) 24"(L)	20.15"(M) 18.5"(N)	22.5"(X) 23.25"(Y)
1660-1528	1"	250'	No	3000	96	31.38"(W) 29.25"(H) 28"(L)	20.15"(M) 21.5"(N)	22.5"(X) 26.25"(Y)
1660-2020	1"	130'	No	3000	82	35.38"(W) 21.75"(H) 20"(L)	24.65"(M) 15.5"(N)	27"(X) 20.25"(Y)
1660-2024	1"	200'	No	3000	89	35.38"(W) 25.25"(H) 24"(L)	24.65"(M) 18.5"(N)	27"(X) 23.25"(Y)
1660-2028	1"	350'	No	3000	106	35.38"(W) 29.25"(H) 28"(L)	24.65"(M) 21.5"(N)	27"(X) 26.25"(Y)
1660-2220	1"	165'	No	3000	89	37.88"(W) 21.25"(H) 20"(L)	26.65"(M) 15.5"(N)	29"(X) 20.25"(Y)
1660-2224	1"	225'	No	3000	98	37.88"(W) 25.25"(H) 24"(L)	26.65"(M) 18.5"(N)	29"(X) 23.25"(Y)
1660-2228	1"	400'	No	3000	112	37.88"(W) 29.25"(H) 28"(L)	26.65"(M) 21.5"(N)	29"(X) 26.25"(Y)
1660-2420	1"	180'	No	3000	78	39.88"(W) 21.75"(H) 20"(L)	28.65"(M) 15.5"(N)	31"(X) 20.25"(Y)
1660-2424	1"	250'	No	3000	102	39.88"(W) 25.25"(H) 24"(L)	28.65"(M) 18.5"(N)	31"(X) 23.25"(Y)
1660-2428	1"	450'	No	3000	114	39.88"(W) 29.25"(H) 28"(L)	28.65"(M) 21.5"(N)	31"(X) 26.25"(Y)
1660-2820	1"	200'	No	3000	94	43.88"(W) 21.75"(H) 20"(L)	32.65"(M) 15.5"(N)	35"(X) 20.25"(Y)
1660-2824	1"	300'	No	3000	107	43.88"(W) 25.25"(H) 24"(L)	32.65"(M) 18.5"(N)	35"(X) 23.25"(Y)
1660-2828	1"	535'	No	3000	113	43.88"(W) 29.25"(H) 28"(L)	32.65"(M) 21.5"(N)	31"(X) 26.25"(Y)
1660-3320	1"	250'	No	3000	104	48.88"(W) 21.75"(H) 20"(L)	37.65"(M) 15.5"(N)	40"(X) 20.25"(Y)
1660-3324	1"	350'	No	3000	117	48.88"(W) 25.25"(H) 24"(L)	37.65"(M) 18.5"(N)	40"(X) 23.25"(Y)
1660-3328	1"	625'	No	3000	121	48.88"(W) 29.25"(H) 28"(L)	37.65"(M) 21.5"(N)	40"(X) 26.25"(Y)
1680-0820	1 1/2"	20'	No	1500	60	20.38"(W) 21.75"(H) 20"(L)	12.65"(M) 15.5"(N)	15"(X) 20.25"(Y)
1680-0824	1 1/2"	35'	No	1500	72	20.38"(W) 25.25"(H) 24"(L)	12.65"(M) 18.5"(N)	15"(X) 23.25"(Y)
1680-0828	1 1/2"	50'	No	1500	82	20.38"(W) 29.25"(H) 28"(L)	12.65"(M) 21.5"(N)	15"(X) 26.25"(Y)
1680-0928	1 1/2"	70'	No	1500	84	22.88"(W) 29.25"(H) 28"(L)	14.15"(M) 21.5"(N)	16.5"(X) 26.25"(Y)
1680-1120	1 1/2"	35'	No	1500	65	24.88"(W) 21.75"(H) 20"(L)	16.15"(M) 15.5"(N)	18.5"(X) 20.25"(Y)
1680-1124	1 1/2"	50'	No	1500	77	24.88"(W) 25.25"(H) 24"(L)	16.15"(M) 18.5"(N)	18.5"(X) 23.25"(Y)
1680-1128	1 1/2"	85'	No	1500	88	24.88"(W) 29.25"(H) 28"(L)	16.15"(M) 21.5"(N)	18.5"(X) 26.25"(Y)
1680-1324	1 1/2"	70'	No	1500	77	26.88"(W) 25.25"(H) 24"(L)	18.15"(M) 18.5"(N)	20.5"(X) 23.25"(Y)
1680-1328	1 1/2"	100'	No	1500	192	26.88"(W) 29.25"(H) 28"(L)	18.15"(M) 21.5"(N)	20.5"(X) 26.25"(Y)
1680-1520	1 1/2"	50'	No	1500	71	28.88"(W) 21.75"(H) 20"(L)	20.15"(M) 15.5"(N)	22.5"(X) 20.25"(Y)
1680-1524	1 1/2"	85'	No	1500	83	28.88"(W) 25.25"(H) 24"(L)	20.15"(M) 18.5"(N)	22.5"(X) 3.25"(Y)
1680-1528	1 1/2"	125'	No	1500	96	28.88"(W) 29.25"(H) 28"(L)	20.15"(M) 21.5"(N)	22.5"(X) 26.25"(Y)
1680-2020	1 1/2"	65'	No	1500	77	35.38"(W) 21.75"(H) 20"(L)	24.65"(M) 15.5"(N)	27"(X) 20.25"(Y)
1680-2024	1 1/2"	100'	No	1500	89	35.38"(W) 25.25"(H) 24"(L)	24.65"(M) 18.5"(N)	27"(X) 23.25"(Y)
1680-2028	1 1/2"	150'	No	1500	105	35.38"(W) 29.25"(H) 28"(L)	24.65"(M) 21.5"(N)	27"(X) 26.25"(Y)
1680-2220	1 1/2"	70'	No	1500	82	35.38"(W) 21.75"(H) 20"(L)	26.65"(M) 15.5"(N)	29"(X) 20.25"(Y)
1680-2224	1 1/2"	125'	No	1500	92	35.38"(W) 25.25"(H) 24"(L)	26.65"(M) 18.5"(N)	29"(X) 23.25"(Y)
1680-2420	1 1/2"	80'	No	1500	83	37.38"(W) 21.75"(H) 20"(L)	28.65"(M) 15.5"(N)	31"(X) 20.25"(Y)
1680-2424	1 1/2"	140'	No	1500	95	37.38"(W) 25.25"(H) 24"(L)	26.65"(M) 18.5"(N)	31"(X) 23.25"(Y)
1680-2428	1 1/2"	200'	No	1500	114	37.38"(W) 29.25"(H) 28"(L)	26.65"(M) 21.5"(N)	31"(X) 26.25"(Y)
1680-2820	1 1/2"	95'	No	1500	90	41.38"(W) 21.75"(H) 20"(L)	32.65"(M) 15.5"(N)	27"(X) 20.25"(Y)
1680-2824	1 1/2"	150'	No	1500	107	41.38"(W) 25.25"(H) 24"(L)	32.65"(M) 18.5"(N)	27"(X) 25.25"(Y)
1680-2828	1 1/2"	225'	No	1500	118	41.38"(W) 29.25"(H) 28"(L)	32.65"(M) 21.5"(N)	27"(X) 26.25"(Y)
1680-3320	1 1/2"	120'	No	1500	98	46.38"(W) 21.25"(H) 20"(L)	37.65"(M) 15.5"(N)	40"(X) 20.25"(Y)
1680-3324	1 1/2"	195'	No	1500	117	46.38"(W) 25.25"(H) 24"(L)	37.65"(M) 18.5"(N)	40"(X) 23.25"(Y)
1680-3328	1 1/2"	275'	No	1500	132	46.38"(W) 29.25"(H) 28"(L)	37.65"(M) 21.5"(N)	40"(X) 26.25"(Y)

What Our Experts Think

Heavy-Duty Performance: Designed for high-temperature exhaust and ventilation applications.
Spring-Driven Retraction: Ensures smooth, controlled retraction for hassle-free operation.
Durable Steel Construction: Built to withstand demanding industrial environments.
Compact & Efficient Design: Saves space while providing maximum functionality.
Corrosion-Resistant Finish: Protects against wear and harsh conditions for long-lasting use.
Easy Installation & Maintenance: User-friendly setup with minimal upkeep required.
Versatile Applications: Ideal for automotive, welding, and industrial exhaust extraction.

Q&A

Q: What is the Coxreels 1600 Series Medium Pressure Hose Reel - 1660-0820?
A: The Coxreels 1600 Series Medium Pressure Hose Reel - 1660-0820 is a durable, spring-driven hose reel designed to handle medium pressure applications, making it ideal for industrial, automotive, and agricultural uses.

Q: What is the hose capacity of this reel?
A: The 1660-0820 model can accommodate hoses up to 80 feet in length and up to 1/2 inch in diameter, supporting a variety of medium pressure needs.

Q: How does the spring-driven mechanism work?
A: It features a smooth spring-driven rewind, providing easy hose retraction and keeping your workspace organized and free of tangles.

Q: Is the reel durable?
A: Yes, the 1600 Series is built from heavy-duty steel with a corrosion-resistant finish, ensuring long-lasting performance in tough environments.

Q: Is the reel easy to install?
A: Yes, the reel offers flexible mounting options, including wall, ceiling, or floor installation, making it versatile for different setups.

Q: What are the typical applications for this reel?
A: It is perfect for applications like air, water, or oil hoses in industrial, commercial, and agricultural environments where medium pressure is required.

Maintenance Tips

Regular Cleaning: Wipe down the reel and hose with a damp cloth to remove dust, dirt, and debris. Avoid abrasive cleaners.
Inspect Hose: Check the hose for cracks, kinks, or wear. Replace if damaged to prevent leaks.
Lubricate Moving Parts: Apply a silicone-based lubricant to the reel's axle and spring for smooth operation.
Check Tension: Ensure the spring is properly tensioned for smooth retraction and adjust if needed.
Secure Fasteners: Tighten all bolts and screws periodically to keep the reel stable and functioning properly.
Proper Storage: Store in a dry, sheltered area when not in use to prevent corrosion or damage from exposure to the elements.
