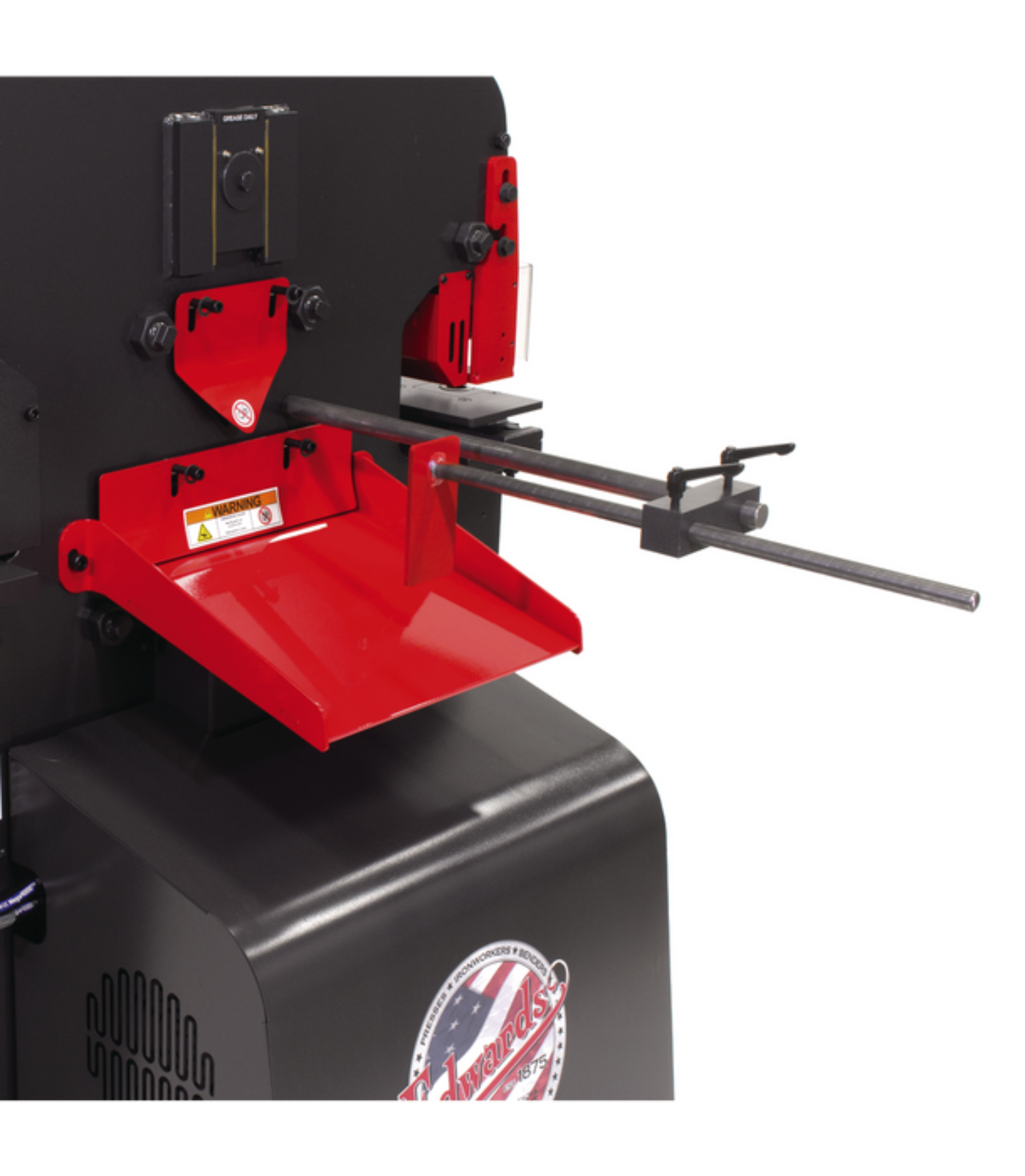

EDWARDS 48" Back Gauge - AC1011

• Positive stop attachment fitted to the back of the Ironworker ensures accurate shearing.
• Fits Edwards 50, 55, 60, 65, 75, 100, 100 Ton Deluxe, 120 Ton, and Elite Ironworkers.
• Speed up production on repeatable cuts by providing an adjustable stop for the Flat Bar Shear and Angle Shear.
• Induction hardened for increased strength.
• Tooth matched at the weld to eliminate blade ticking.

What Our Experts Think

• Precise Positioning – The 48" back gauge ensures accurate and repeatable positioning for precise bends and cuts.
• Durable & Reliable – Built with high-quality materials, offering exceptional durability and long-lasting performance for demanding tasks.
• Enhanced Productivity – Reduces setup time and increases operational efficiency, allowing for quicker and more precise work.
• Compatible with Edwards Equipment – Seamlessly integrates with Edwards Press Brakes, ensuring smooth and reliable operation.
• Versatile & Adjustable – Designed for use with a wide variety of materials, increasing flexibility and performance in your shop.

Q&A

Q: What is the EDWARDS 48" Back Gauge used for?
A: The AC1011 back gauge is designed to provide precise material positioning for bending operations on EDWARDS Press Brakes.

Q: Is the 48" back gauge compatible with all EDWARDS press brakes?
A: Yes, it is compatible with a wide range of EDWARDS Press Brake models for enhanced bending accuracy.

Q: How does the back gauge improve bending operations?
A: It ensures accurate material placement, reducing errors and improving the precision of each bend.

Q: Is the 48" back gauge adjustable?
A: Yes, the back gauge is adjustable, allowing for flexible and precise positioning of materials during bending.

Q: Why should I choose the EDWARDS 48" Back Gauge?
A: It enhances productivity, ensures accurate bends, and reduces material waste during metalworking tasks.

Maintenance Tips

• Regular Cleaning – Keep the back gauge free from dust, debris, and metal shavings. Use a soft cloth to wipe down the surface after each use.
• Lubricate Moving Parts – Apply lubricant to all moving parts, including the rails and actuators, to ensure smooth and precise movement.
• Check for Alignment – Regularly verify that the back gauge is properly aligned to ensure accurate measurements and cuts.
• Inspect for Wear – Periodically inspect the back gauge for signs of wear or damage, especially the gauge rails and fingers. Replace parts as needed.
• Avoid Overloading – Do not exceed the weight limits of the back gauge to prevent unnecessary strain on the system and ensure longevity.
