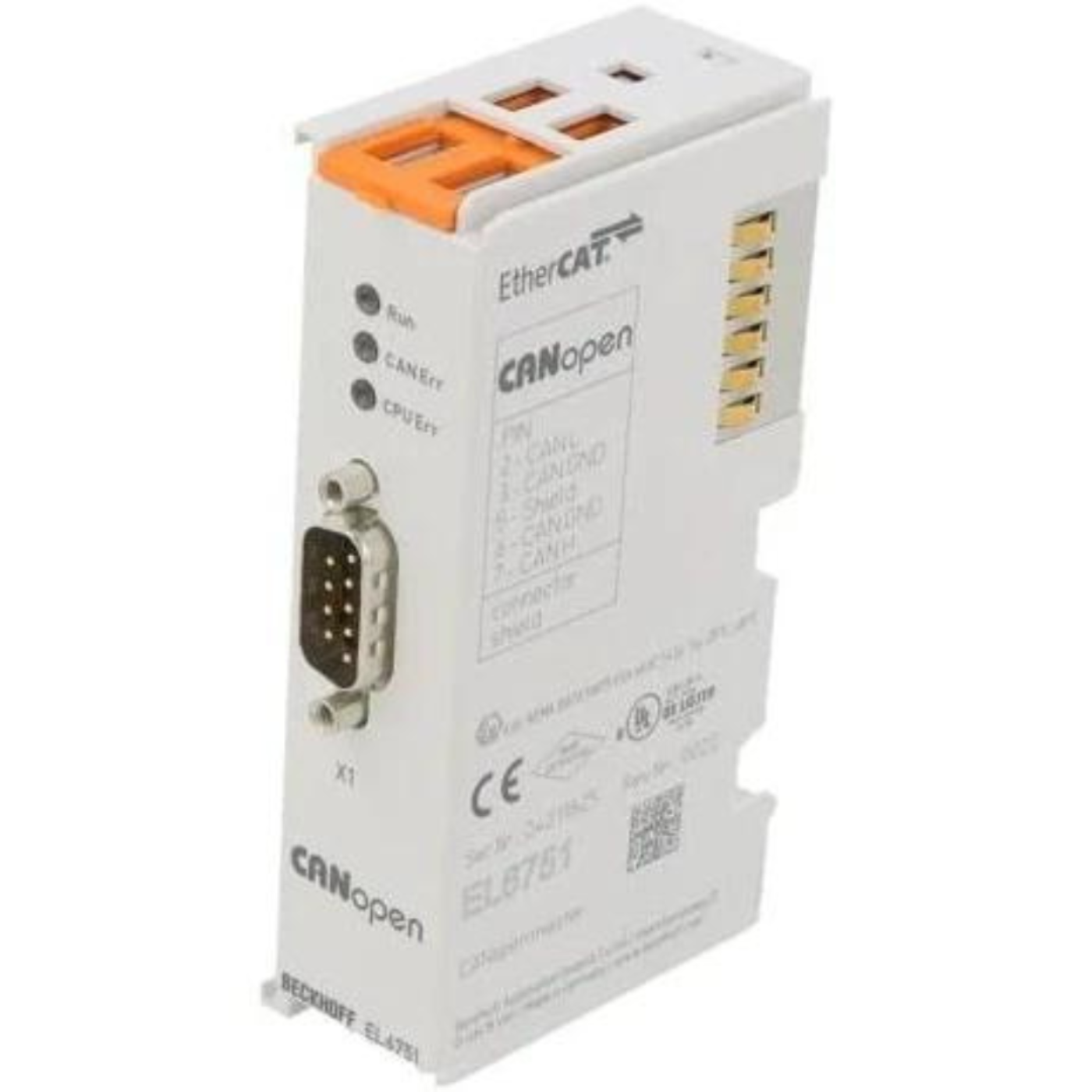

BECKHOFF EtherCAT Terminal, 1-channel communication interface, CANopen, master/slave - EL6751

BECKHOFF EtherCAT Terminal, 1-channel communication interface, CANopen, master/slave - EL6751

EL6751 is an EL6xxx series master terminal manufactured by Beckhoff. This terminal weighs approx. 70 g, operates at a temperature range of -25 to +60 degrees Celsius, and its current consumption (from the E-bus) is typ. 230 mA.

Information About EL6751
The Terminal enables within an EtherCAT Terminal network the integration of any CANopen devices and can either be master (EL6751) or slave (EL6751-0010). In addition, general CAN messages can be sent or received – without having to bother with CAN frames in the applications program. The terminal has a powerful protocol implementation with many features:

All CANopen PDO communication types are supported: event driven, time driven (using an event timer), synchronous, polling.

synchronization with the PC controller's task cycle

SYNC cycle with quartz precision for drive synchronization, zero cumulative jitter

parameter communication (SDO) at start-up and when running

emergency message handling, guarding and heartbeat

powerful parameter and diagnostics interfaces

online bus load display

Manufacturer information
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.

Specifications

What Our Experts Think

• High Performance: Beckhoff control systems offer powerful computing capabilities for demanding industrial automation tasks.

• Energy-Efficient: Designed with optimized power usage to support sustainable, low-energy operations.

• Durable & Reliable: Built to withstand harsh industrial environments with high-quality components and rugged designs.

• Quiet Operation: Fanless or low-noise cooling systems in many models ensure minimal disruption in sensitive areas.

• Easy Installation: Modular design allows for quick and flexible setup in a wide range of industrial applications.

Q&A

Q: What is Beckhoff equipment used for?
A: Beckhoff products are used for industrial automation, providing control, motion, and communication solutions for a variety of industries.

Q: What features are included in Beckhoff automation systems?
A: Features include high-performance CPUs, modular I/O systems, compact form factors, and support for leading industrial communication standards like EtherCAT.

Q: Are Beckhoff products energy-efficient?
A: Yes, many Beckhoff systems are designed to reduce energy consumption while maintaining high-speed, precise control.

Q: How does Beckhoff compare to other automation brands?
A: Beckhoff stands out for its open automation systems, flexible designs, and strong performance in both small and large-scale industrial projects.

Maintenance Tips

• Keep Units Clean: Regularly remove dust and debris from ventilation openings and surfaces.

• Check Connections: Inspect cables and connectors periodically for wear or damage.

• Monitor Software Updates: Keep firmware and software updated to ensure optimal performance and security.

• Temperature Control: Ensure devices are operated within recommended temperature ranges to avoid overheating.

• Annual System Check: Have a technician perform a full inspection and preventive maintenance annually.
