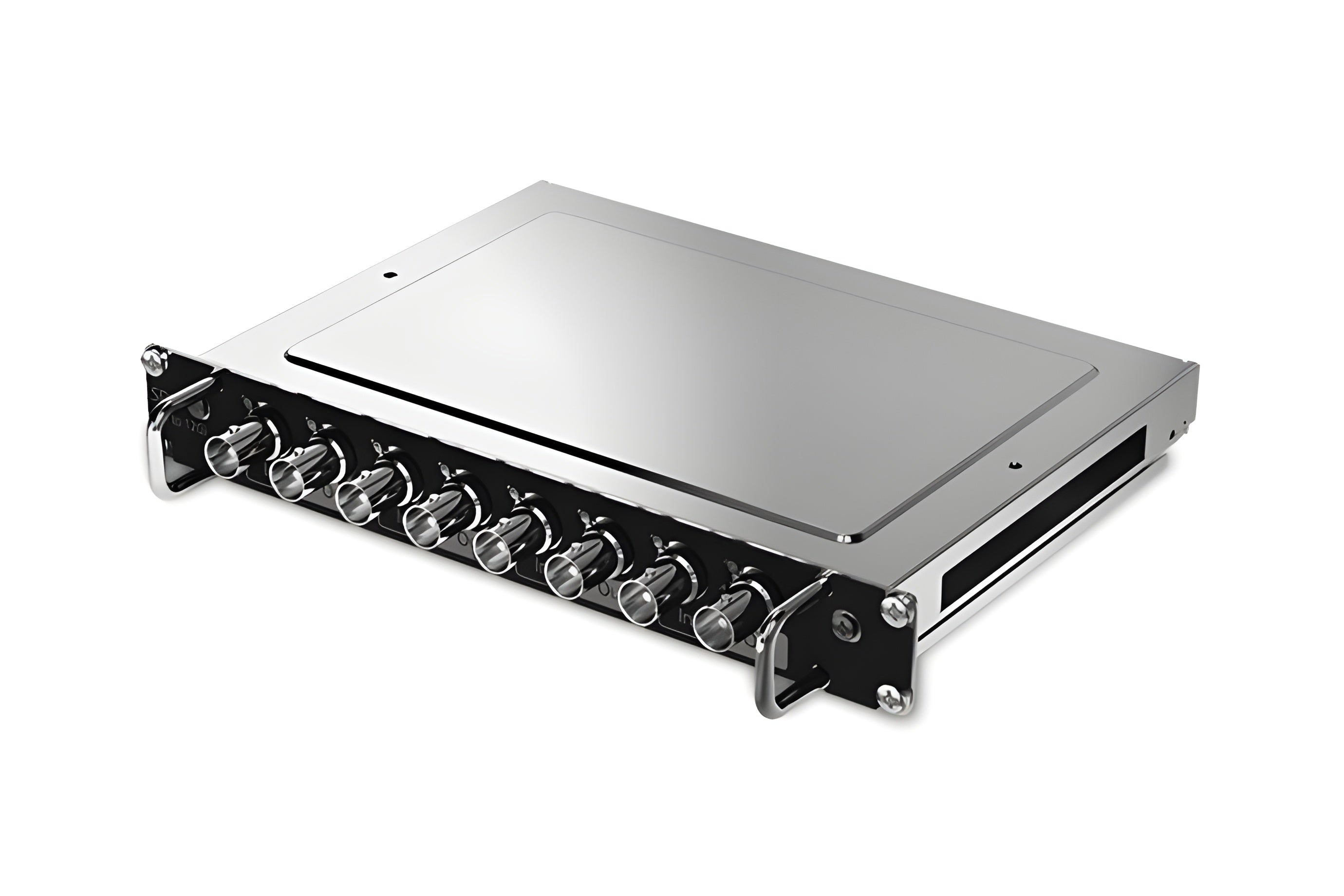

Epson V12H918F01 ELPIF02 SDI Interface Board - V12H918F01

Epson V12H918F01 ELPIF02 SDI Interface Board - V12H918F01

The ELPIF02 SDI projector interface board enables users to expand the connectivity of the Epson Pro L12000Q large-venue projector. With this board, users can easily add additional functionality to their projector for seamless integration with their existing and future systems. Supports 12G-SDI, which permits one cable for SDI 4K instead of a quad link by using four terminals. SDI in (SD/HD/3G/12G) up to 4K 60Hz YCbCr 4:2:2. Note: only SDI input no. 1 supports 12G-SDI.

Features

• Advanced connectivity — accommodates a wide range of inputs (SDI input/output x 4)
• Compatibility — for use with Epson Pro L12000Q
• Easy installation — facilitates quick replacement in the field; allows for a 328-foot cable length

What Our Experts Think

• Seamless Integration: Enables easy connection between your Epson projector and SDI-enabled devices for professional-grade presentations.
• High-Quality Performance: Ensures reliable signal transmission for optimal image clarity and performance.
• Perfect for Large Venues: Ideal for environments like auditoriums or stadiums where SDI connections are commonly used.
• Easy Installation: Simple to install with compatible Epson projectors, enhancing versatility without complex setups.
• Durable Design: Built to last with Epson’s high-quality standards, ensuring longevity and dependable service.
• Enhanced Connectivity: Expands connectivity options, offering greater flexibility for various professional settings.

Q&A

Q: What is the Epson V12H918F01 ELPIF02 SDI Interface Board used for?
A: The Epson V12H918F01 ELPIF02 SDI Interface Board is designed to add SDI (Serial Digital Interface) connectivity to compatible Epson projectors, enabling professional-grade video signal input for high-quality image display.

Q: Which Epson projectors are compatible with the ELPIF02 SDI Interface Board?
A: The ELPIF02 SDI Interface Board is compatible with various Epson Pro and PowerLite series projectors. Check the specific projector model for compatibility.

Q: How does the Epson ELPIF02 SDI Interface Board improve video quality?
A: This board allows for high-quality, uncompressed video signal transmission, ensuring superior video clarity and reliability, especially in professional AV environments.

Q: Is the Epson V12H918F01 easy to install?
A: Yes, the ELPIF02 SDI Interface Board is designed for easy installation in compatible Epson projectors. Installation can be done quickly with the provided instructions.

Q: What types of connections are supported by the Epson ELPIF02 SDI Interface Board?
A: The board supports SDI input, providing enhanced connectivity options for professional AV setups.

Maintenance Tips

• Handle with Care: The Epson V12H918F01 ELPIF02 SDI Interface Board is a delicate electronic component. Always handle it by the edges to avoid damaging the circuitry or connectors. Ensure your hands are clean and dry before touching it.

• Check for Firmware Updates: Keep the firmware of the interface board updated to ensure optimal performance and compatibility with your Epson projector. Regularly check for updates from Epson’s support page and apply them as needed.

• Ensure Proper Installation: When installing the SDI Interface Board, make sure it's securely connected to the appropriate ports and slots. Improper installation could result in functionality issues or connection errors.

• Prevent Dust and Debris: Dust and dirt can negatively affect the performance of the interface board. Install the board in a clean, dry environment, and use compressed air to blow away any dust from the connectors or surrounding areas.

• Keep the Environment Cool: Ensure proper ventilation around the projector and interface board. Overheating can affect the board’s performance and reduce its lifespan. Avoid placing the projector in areas where airflow is obstructed or the temperature fluctuates significantly.

• Inspect the Cables: Always use high-quality, compatible cables for SDI connections. Regularly inspect cables for any visible wear or damage. Replace them immediately to avoid connection problems or potential damage to the interface board.

• Avoid Electrical Surges: To protect the interface board and other sensitive electronics, use surge protectors or uninterruptible power supplies (UPS). Power surges can cause damage to the SDI interface board and other components.

• Disconnect During Long Periods of Non-Use: If the Epson projector with the interface board is not in use for an extended period, disconnect the board to prevent any potential damage from power surges or electrical issues.

• Perform Regular Visual Inspections: Periodically inspect the interface board and its connections for signs of corrosion, damage, or loose connections. If you notice any issues, contact Epson support for advice or replacement.

• Storage: If you need to store the SDI Interface Board, keep it in an anti-static bag in a dry, cool environment. Avoid exposing it to extreme temperatures or humidity, which can degrade its components.
