Fanuc Corporation Ge Fanuc Quickpanel View, Control Operator Interface, 15 Inch TFT Display, 24VDC - IC754VSF15CTD

Fanuc Corporation Ge Fanuc Quickpanel View, Control Operator Interface, 15 Inch TFT Display, 24VDC - IC754VSF15CTD

The GE Fanuc IC754CSL06CTD is a Human Machine Interface (HMI) device from the QuickPanel product family. This HMI features a 15-inch Colored TFT screen, Touchsceen input interface, 64 MB Flash Memory, 512KB SRAM, 64 MB DRAM, 512KB Boot loader. It has Two (2) Ethernet interface, One (1) Serial EIA232C/EIA485, DP25S combo port, One (1) RS232 port Two (2) USB Interfaces. It has Windows CE Operating System.

Information About IC754VSF15CTD

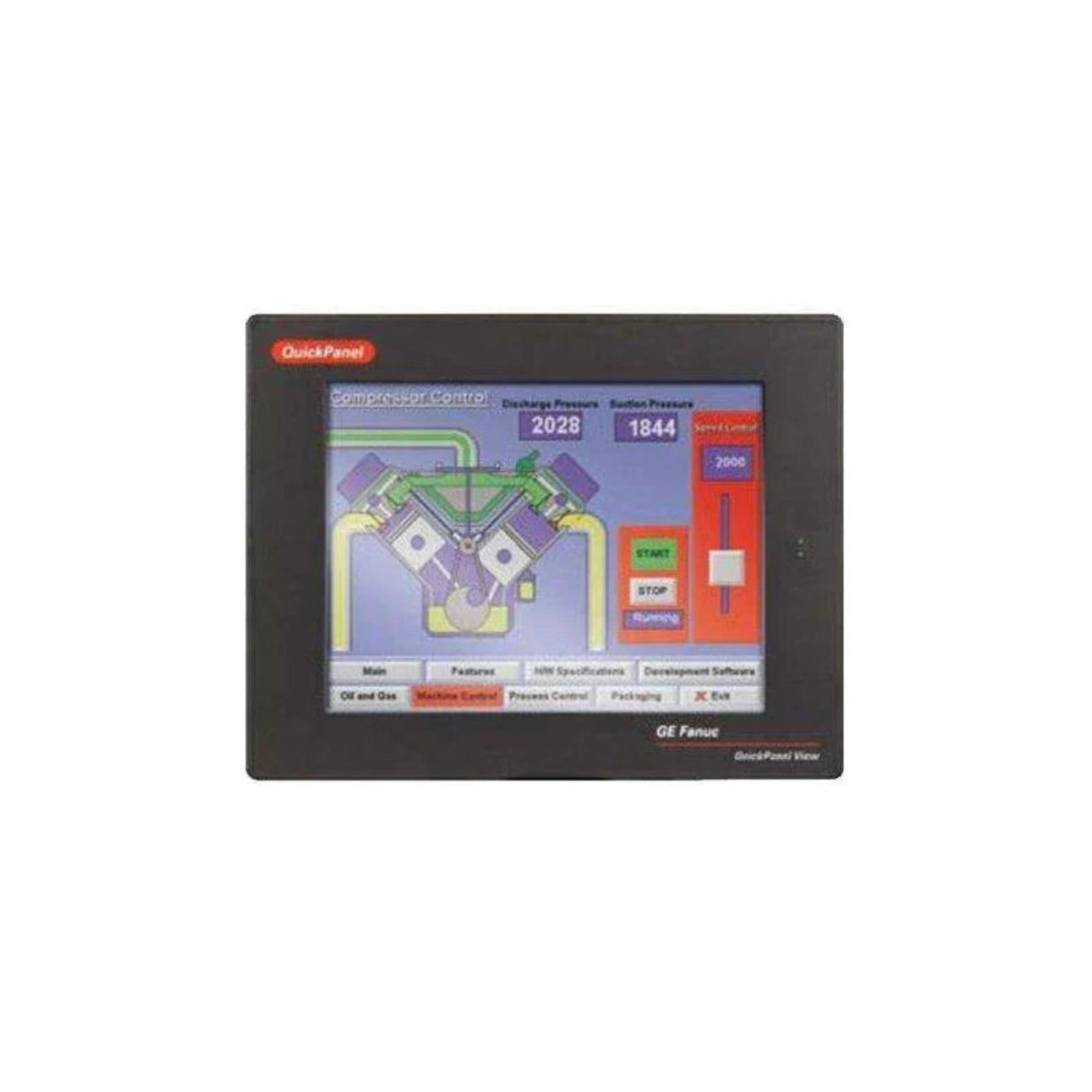

The IC754VSF15CTD is a General Electric Quick Panel terminal. It is an operator terminal which gives users the ability to interface with their machines. It has a color display which is 15 inches. It gives the users the ability to connect it by using the Proficy – View Machine Edition software. It also enables them to connect it with the RS485 communication port and the RS232 ports via an HM1-CAB communication cable. The touch screen it has can also be used to input data. This device is powered by 12 to 24 Volts DC. It has an internal memory capacity of 64 MB which the operators can use to store information. This memory also aids in improving the speed of this device.

A number of operations can be performed on the IC754VSF15CTD. This is made possible by the Microsoft Windows C.E. NET software which is installed in it. In addition to this, the user may decide to fit it with additional operating software. The touchscreen also enables it to be used as a standalone device or as part of an integrated network. Operators of the IC754VSF15CTD can install it in third-party user applications which make the system more effective and efficient. A high-interface resolution is embedded in the IC754VSF15CTD. It provides the users several options that enable them to customize their operations. The memory types it contains gives users the ability to store data and information. They also enable it to function optimally and faster. This device can be connected through the quick connect plug or through any other optional input plugs which the users may decide to use. Before installing this device, it is important to do a thorough inspection of all the parts to prevent the users from being electrocuted. Applications can be downloaded via Ethernet.

Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.

Specifications

What our Experts Think

• Purpose-Built Performance: Designed for reliable high-speed communication between the GE Series 90-70 PLC and remote I/O devices.

• Industry-Grade Reliability: Known for long-term durability in demanding industrial environments.

• Plug-and-Play Integration: Seamlessly integrates with other GE Fanuc automation systems, minimizing setup time.

• Efficient Data Handling: Supports up to 8 I/O drops with high-speed serial communication via Genius Bus.

• Smart Diagnostics: Built-in LEDs and status indicators for quick troubleshooting and minimal downtime.

• Compact Design: Space-saving module fits easily into existing GE 90-70 racks.

Q&A

Q: What is the GE Fanuc IC697BEM733?
The IC697BEM733 is a Genius Remote I/O Scanner module designed for the GE Fanuc Series 90-70 PLC system. It facilitates communication between the central processor and remote I/O modules over the IC66* bus.

Q: What is the maximum distance it supports?
It supports a maximum distance of 7,500 feet (2,275 meters) from the host controller, depending on the baud rate and cable type

Q: How many devices can it connect?
The module can connect up to 32 devices on the bus at 153.6 Kbaud or 76.8 Kbaud, and up to 16 devices at 38.4 Kbaud.

Q: What is the I/O capacity?
It supports up to 1,024 discrete I/O points or 64 analog I/O points per remote drop.

Q: What types of modules are compatible?
Compatible modules include discrete and analog I/O modules, Bus Transmitters, Bus Receivers, PCM, ADS, and analog expander modules.

Q: What are the communication ports?
The IC697BEM733 features one 15-pin RS-422/485 serial port and one 9-pin IC66* Hand-held Monitor port.

Q: What is the current draw?
It requires 0.8 Amps at 5.0 Volts DC.

Q: What is the maximum number of remote drops?
It supports up to 20 fully-loaded remote drops or up to 30 drops if not fully-loaded, depending on the baud rate.

Maintenance Tips

• Regularly Inspect for Physical Damage: Check for signs of wear, corrosion, or physical damage, especially around connectors and mounting points.

• Ensure Proper Ventilation: Maintain adequate airflow around the module to prevent overheating.

• Verify Secure Module Connections: Ensure that all modules are securely seated in their respective slots to prevent communication issues.

• Monitor Power Supply: Check that the power supply is stable and within the specified voltage range to prevent damage to the module and connected devices.

• Keep the Environment Clean: Regularly clean the module to remove dust and debris, which can affect performance and cause overheating.

• Check Expansion Connections: If using expansion modules, ensure that the connections are secure and that the total system does not exceed the maximum supported configuration.

• Update Firmware as Necessary: Keep the firmware updated to ensure compatibility with other modules and to benefit from performance improvements
