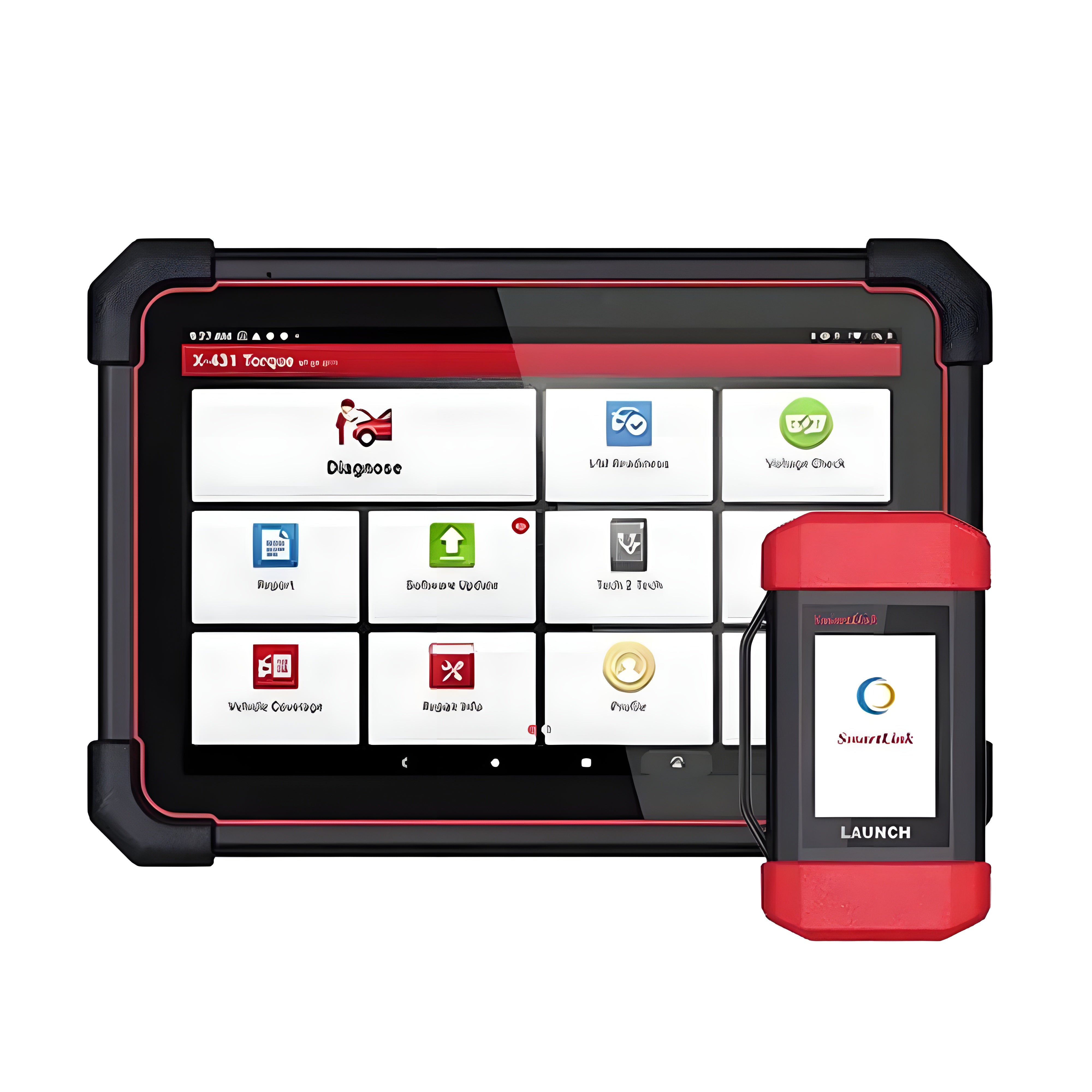

Launch Tech USA Torque Link Diagnostic Device - LNCH-X431-TORQUE-LINK

Launch Tech USA Torque Link Diagnostic Device - LNCH-X431-TORQUE-LINK

X-431 Torque LINK is an advanced intelligent car diagnostic device which is developed based on Android 10.0 system. Using 2.0Ghz 4-core high-efficiency processor, 10.1-inch color display, 4GB RAM+128GB ROM large storage, equipped with high-endurance battery, running faster, more stable and longer.

X-431 Torque LINK supports full system fault diagnosis, with functions such as Read DTCs, Clear DTCs, Read Data stream, Special function, Actuation test, Coding, Matching and more. It supports CANFD / DOIP diagnosis protocol.

Features

• Full System & Full Function Diagnosis
• Auto Detect Vins in Minutes
• Bi-Directional Control / Remote Diagnostic Function
• Dual Band 5G & 2.4 G Wireless Connection with Ultra-Fast Speeds
• Advanced Vehicle protocols including DOIP, CANFD ETC
• Support X431 Fix Repair Information. Driven By Motor
• Code Assist Databse By Identifix
• SGW Security Gateway Approved By FCA
• Pin detection function to detect Pin volt, Data Rate and protocols
• More available software can be purchased via In-APP mall
• Build-in passenger car software, truck software purchase alone
• One-click upgrade for car models software
• Non-16 pin passenger car adapter cable kit covered
• Support USB Type C, USD Type A interface, Etc

Product Specifications

• Android 10.0
• 10.1 inch touch screen 1280*800
• Rear 8 MP, Front 5 MP
• Battery: 47880mWh (7.6V, 6300mAh)
• CPU 2.0 GHz Quad-core
• Memory：4GB+ Storage ：128GB
• Working Temperature: -20℃--70℃-
• Temperature: 0℃--50℃
• Connectivity：WiFI/Bluetooth
• Size: 274*190*40.5 (mm) / 10.79*7.48*1.59 (inch)
• Weight:1.45 kg

Contents:

• Power adapter, 5V / 5A,
• USB A-type to B-type cable
• Six Kinds of Gigabit Networks (Blue)
• Type A to type C USB data cable
• OBD16 male to HDB15F test main line (with DC)
• HD15M to OBDII 16 male integrated test connector
• Multilingual quick start,
• Universal PIN envelope
• SmartLink C Diagnostic Connector
• Front camera host 4 +128

Manual

• Quick Start Guide
• X431 Scan Tool Comparision Chart

What Our Experts Think

• Seamless Vehicle Compatibility: Supports full system diagnostics for a wide range of OBDII vehicles.
• Wireless & Portable: Compact design with Bluetooth connectivity for remote diagnostics and mobile use.
• Real-Time Data: Delivers fast, accurate fault detection and live data streaming.
• Advanced Diagnostics: Features ECU coding, bi-directional testing, and special functions for deeper insights.
• User-Friendly Interface: Intuitive app integration for smooth navigation and quick reporting.
• Regular Updates: Stay ahead with consistent software updates, keeping pace with evolving vehicle tech.

Q&A

Q: What is the Launch Tech USA Torque Link Diagnostic Device?
A: The Launch X-431 Torque Link (LNCH-X431-TORQUE-LINK) is a professional wireless diagnostic device designed for remote vehicle diagnostics, offering bi-directional control, ECU coding, and full-system scanning.

Q: What vehicles are compatible with the Torque Link?
A: It supports OBDII/EOBD vehicles, covering over 150 U.S., Asian, and European car brands, ensuring wide diagnostic coverage.

Q: What are the key features of the Torque Link?
A: Key features include remote diagnostics, cloud-based repair data, real-time data streaming, ADAS calibration, and seamless Bluetooth connectivity.

Q: Is the Torque Link user-friendly for professionals?
A: Absolutely! It’s compact, portable, and pairs easily with smartphones or tablets, making it perfect for both shop and mobile diagnostics.

Q: Does the Torque Link come with software updates?
A: Yes, it includes 2 years of free software updates, keeping your device equipped with the latest vehicle data and diagnostic tools.

Maintenance Tips

• Firmware Updates: Regularly update via the official Launch app for accurate diagnostics.
• Battery Care: Use the recommended charger and avoid overcharging to preserve battery life.
• Device Protection: Apply a screen protector and keep the device in a shockproof case.
• Clean Connections: Inspect and clean OBD-II ports and cables to ensure reliable data transmission.
• Proper Storage: Store in a cool, dry place to prevent moisture or dust damage.
