Bring Smart Green Energy Products Into Every Home, And Help Every Family Realize A Zero Carbon Emission Future.

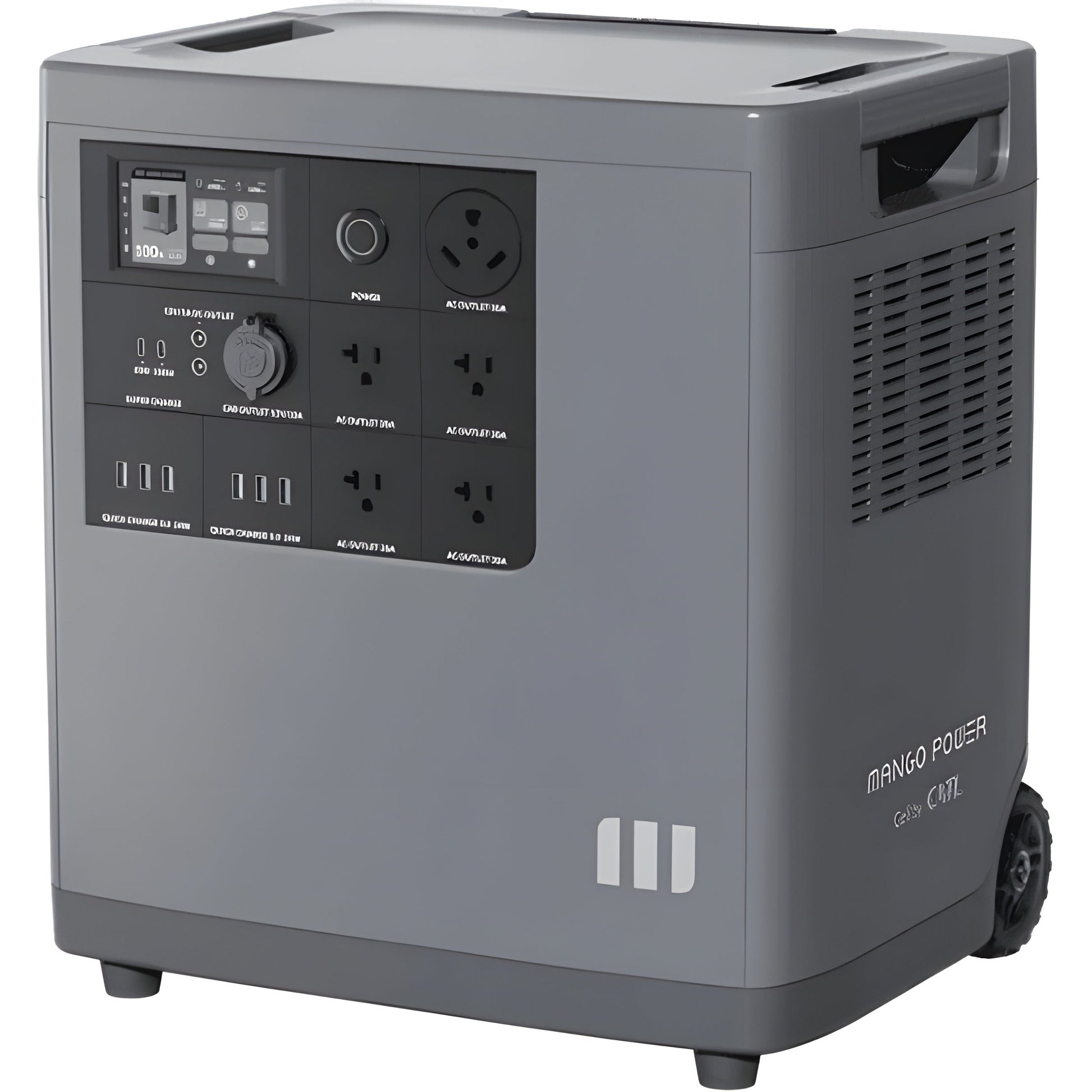

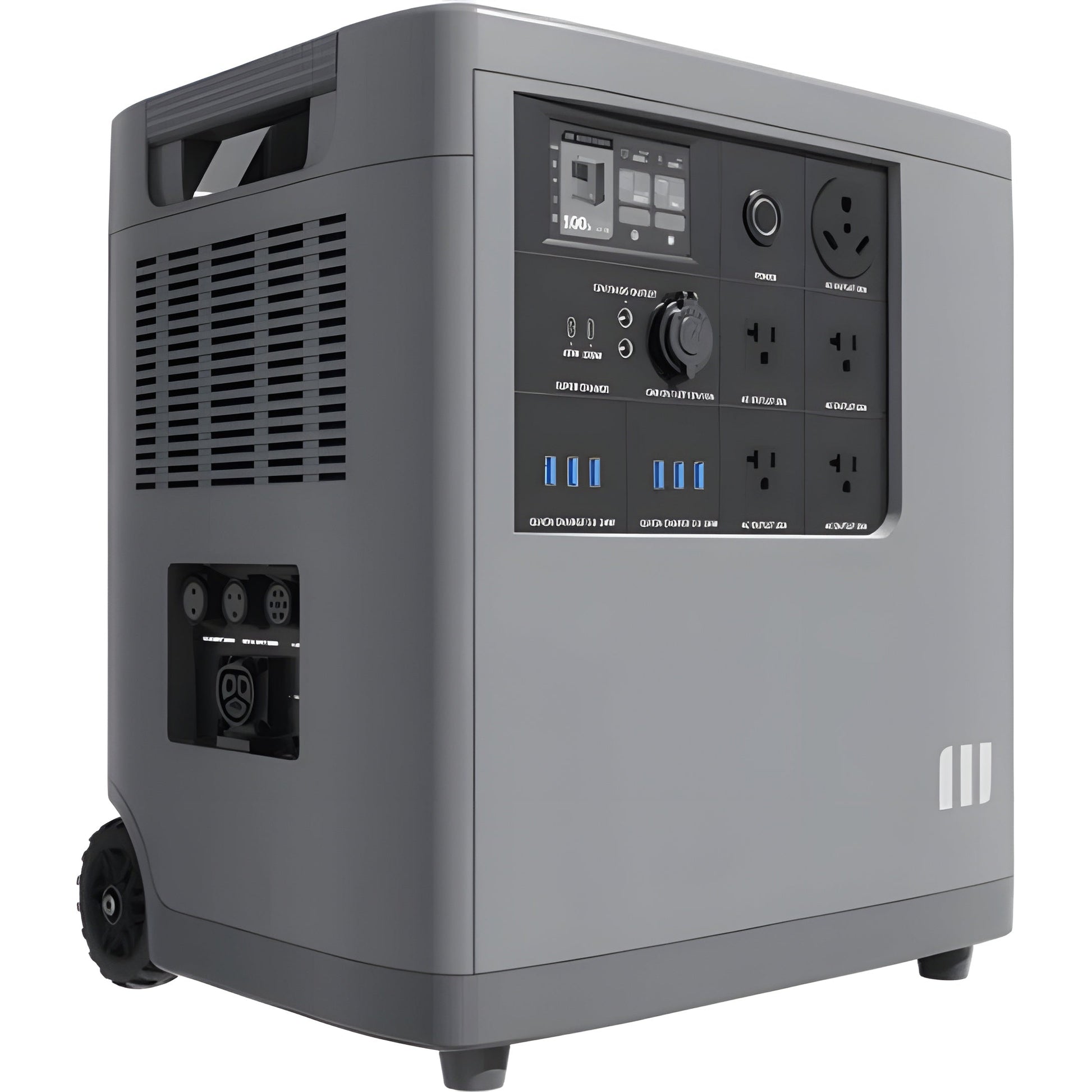

The Mango Power E is a beast! With a massive 3500Wh capacity and 3000W output, the Mango Power E Home Backup and Portable Power Station can power a wide range of appliances and devices, including refrigerators, lights, laptops, and more.

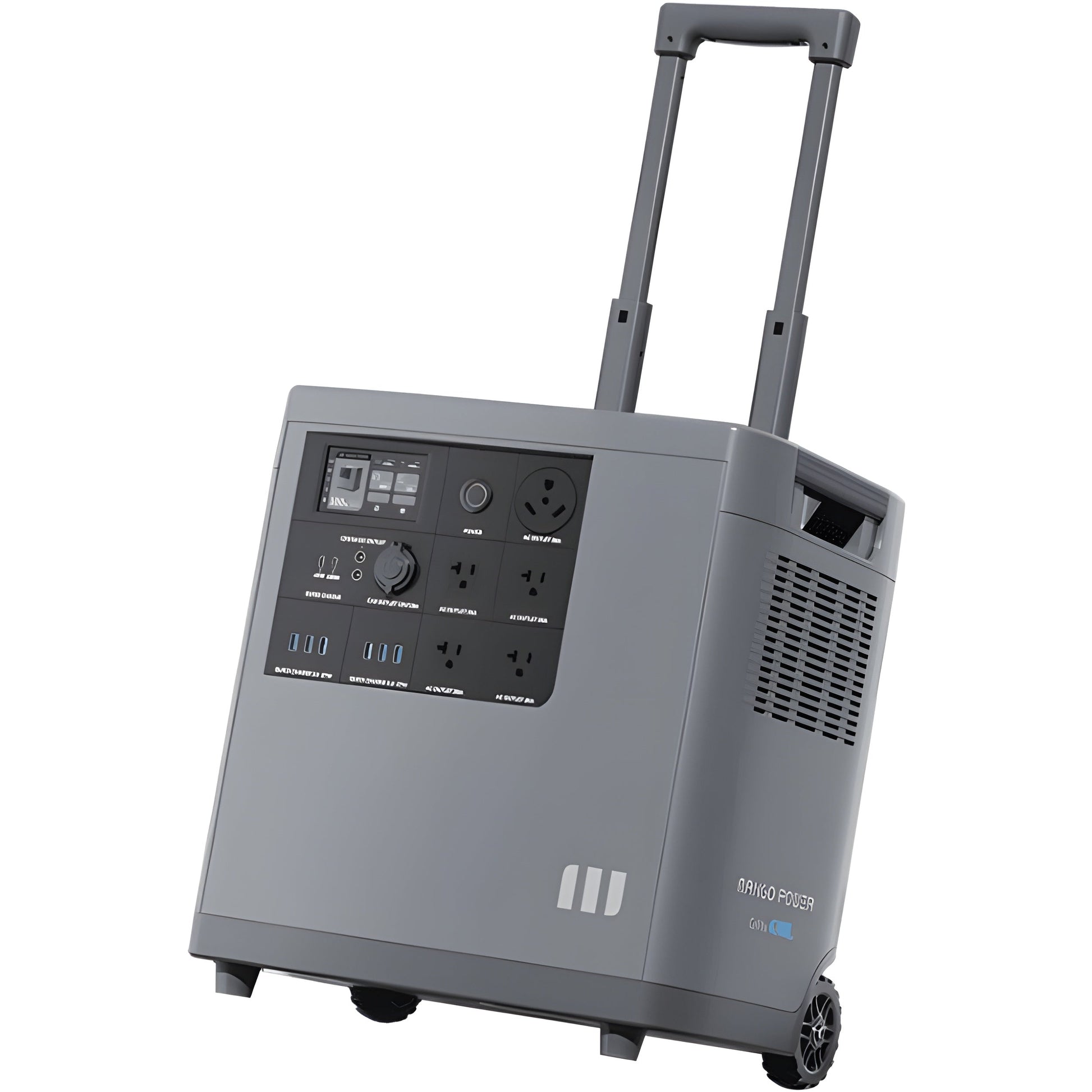

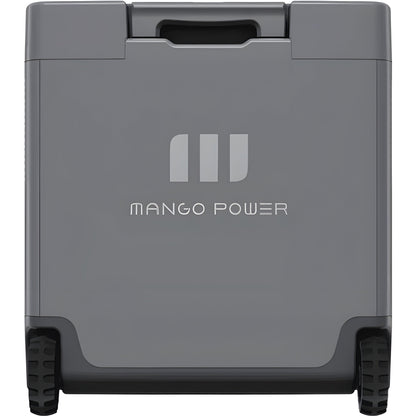

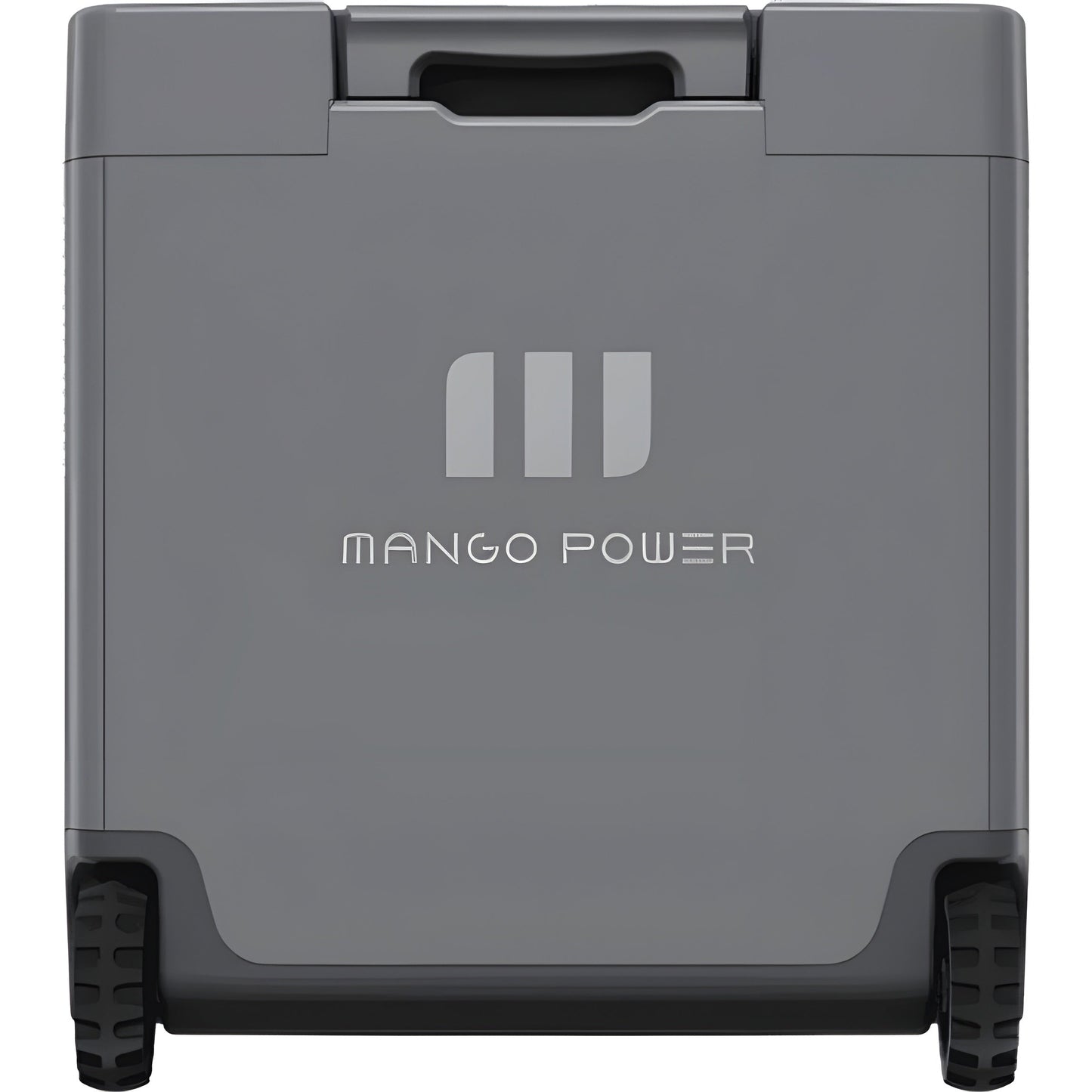

It is also equipped with a variety of features that make it ideal for both home backup and portable use, including a built-in inverter, a solar charging port, and a wheeled luggage-like design.
With its enormous capacity, powerful output, durable design, and ease of transport, the Mango Power E is the perfect solution for your home backup as well as your portable power needs.
240V Split-Phase for Heavy-Duty Appliances
With the mSocket Pro* accessory, the Mango Power E becomes a high-powered split-phase generator capable of delivering 240V output so you can run large power-consuming appliances such as heaters, dryers, water pumps, and more.
Even with up to five years' continuous use, charging, discharging, and recharging constantly, the Power E's best-in-class battery cells will still perform as well as they did when brand new.
Better Environmental Adaption

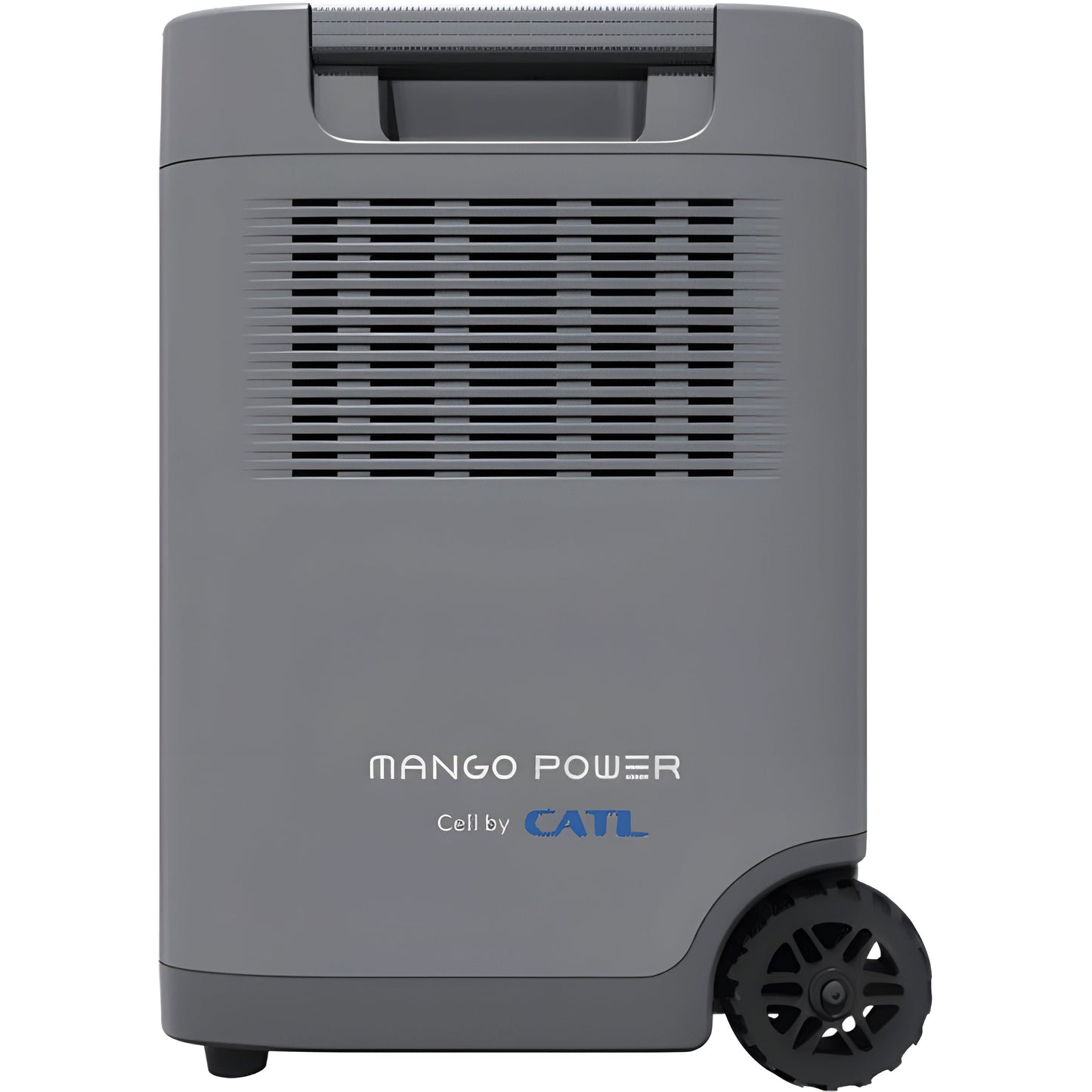

CATL's batteries can withstand temperatures from -20°C to 60°C. This allows our power stations to operate smoothly even in extreme cold conditions.
Specification
| Net Weight |
100.1 lbs / 45.4 kg |
| Dimensions (L x W x H) |
17.8 x 13.6 x 19.4 in / 45.2 x 34.5 x 49.4 cm |
| Working Temp (Charging) |
-10°C to 45°C (14℉ to 113℉) |
| Working Temp (Discharging) |
-20°C to 45°C (-4℉ to 113℉) |
| Warranty |
5 Years |
| Certifications |
Meets US and International Safety and EMI Standards |
| Quick Charge |
80% in 1 hour, 100% in 1.5 hours |
| Running Noise |
<40dB (no-load), <51dB (full-load) |
| IP Level |
IP21 |

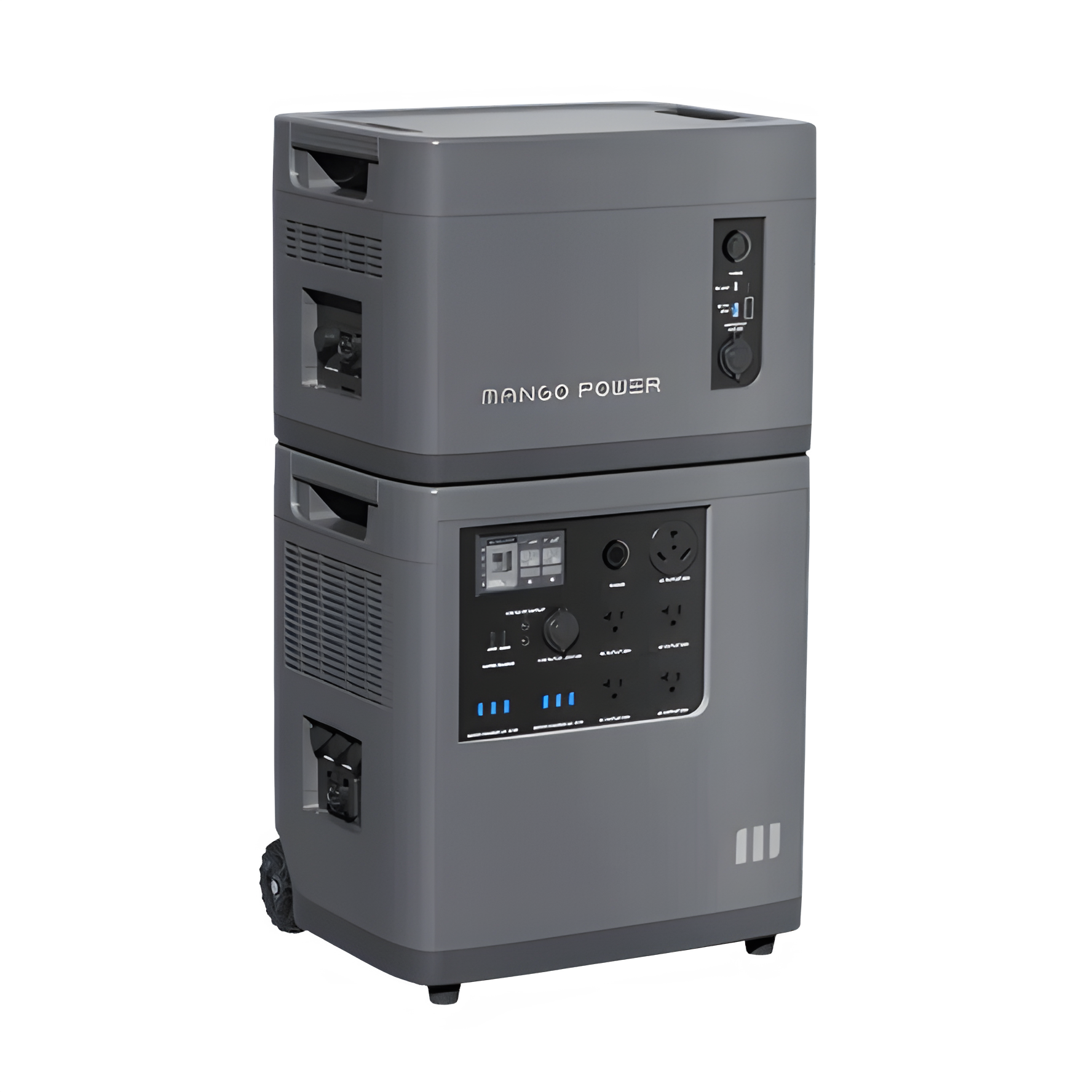

| Expansion Capacity |

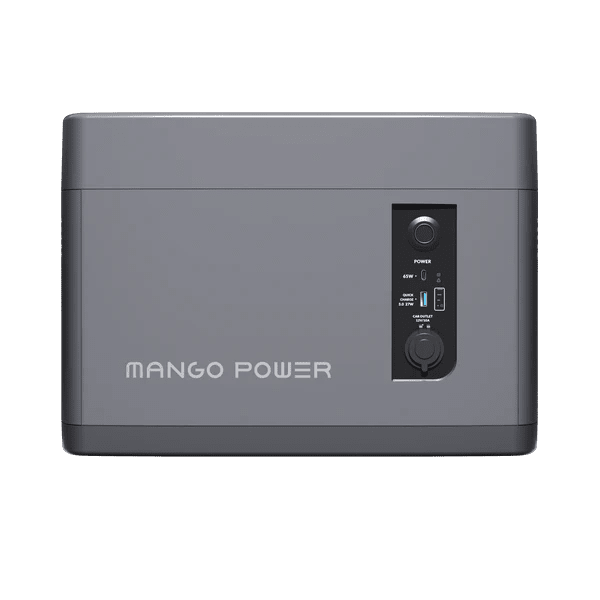

Up to 7066Wh with one E Battery |
| Expansion Power |
Up to 6000W with two units |
| 240V Split Phase Output |
With mSocket Pro or mPanel (sold separately), 6000W |
| Home Backup Support |
Yes (requires mPanel Pro) |
| Battery Capacity |
3533Wh |
| Cell Chemistry |
CATL LFP (World's Best) |
| Life Span |
>70% capacity after 6000 cycles (@25℃, +0.5C/-0.5C) |
| Battery Management Systems |
Over Voltage, Overload, Over Temp, Short Circuit, Low Temp, Low Volt, Overcurrent Protection |
| AC Wall Charging |
Max 3000W |
| Solar Charging |
Max 2000W (60V–150V) |
| EV AC Charging Spot |
Adapter needed |
| Generator Support |
Yes |
| Rated AC Output Power |
3000W, 120V AC, 60Hz |
| Overload Power Handling |
- 3150W < load ≤ 3750W: 5 min |
| MPPT (Solar Input) |
1x, supports roof & portable solar panels |
| Inverter Efficiency |
Up to 88% |

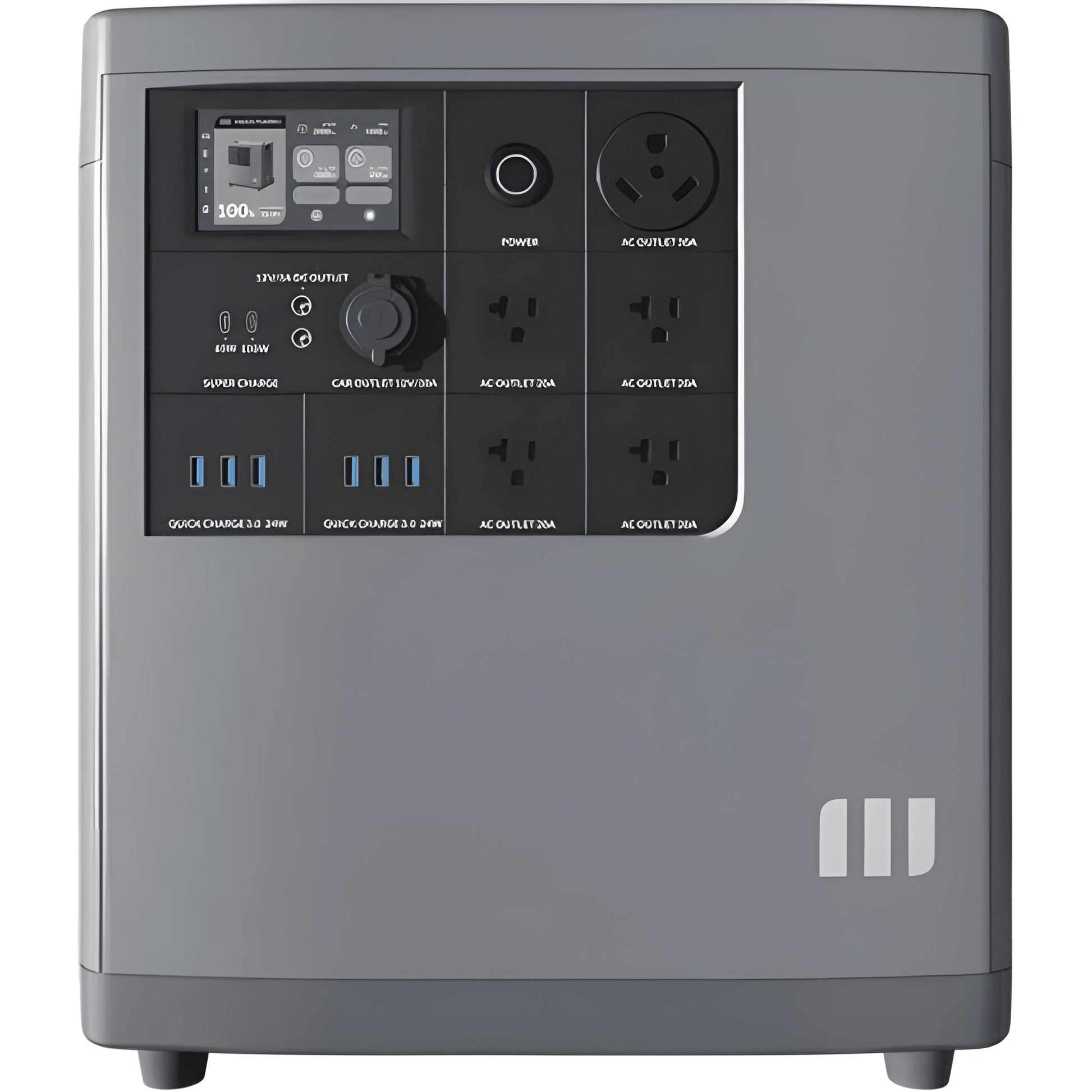

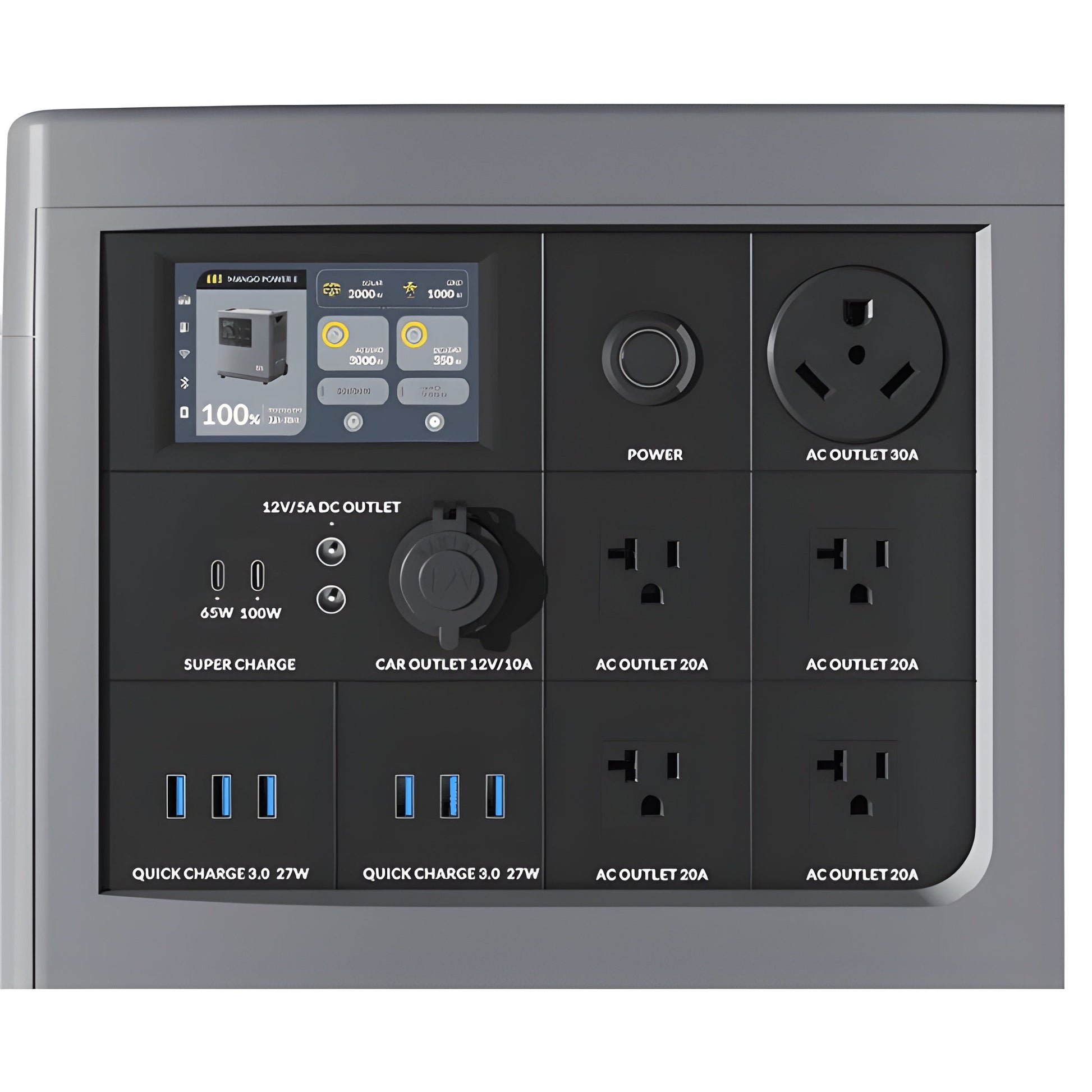

| AC Output |
4 x 20A |
| USB-A (QC 3.0) |
6 ports, 24W each |
| USB-C |
1 x 65W PD + 1 x 100W PD |
| Car Port |
12V / 10A |
| DC5521 |
2 x 12V / 5A |
| RV Port |
30A RV Port |
| Feature |
Details |
| Connection |
Bluetooth, Wi-Fi |
| App Support |
Yes, with OTA upgrade |
| Modes |
Backup, Economical, Time-based Smart Mode |
| Monitoring |
Energy & Carbon Footprint Report, Notifications |
| Screen |
4.3" Touchscreen, 480x800 resolution, 16.7M colors |
| Self-check System |
Yes |
Product Documents
What Our Experts Think
-
Versatile Power Supply: Offers a robust power output for home backup during outages and portable energy for outdoor activities.
-
Large Capacity: Provides ample power to run appliances, electronics, and devices, keeping your home and outdoor gear powered for hours.
-
Multiple Charging Ports: Equipped with various outlets, including AC, DC, and USB ports, ensuring compatibility with a wide range of devices.
-
Portable Design: Compact and easy to transport, making it a perfect choice for camping, RVs, or emergency situations.
-
Reliable and Efficient: Features a durable build and high efficiency, offering long-lasting and consistent performance.
Q&A
Q: What is the Mango Power E Home Backup and Portable Power Station?
A: The Mango Power E (MPE01US1N001) is a versatile home backup and portable power station designed to provide reliable off-grid energy storage, ideal for emergency power, camping, or off-grid living.
Q: How is it charged?
A: The Mango Power E can be charged through multiple methods: solar panels, grid power, or car charging, offering flexibility depending on your location and needs.
Q: How much energy storage does it offer?
A: The Mango Power E offers substantial energy storage to meet your power needs for extended periods, with a battery capacity large enough to power essential devices during power outages.
Q: Is it portable?
A: Yes, the Mango Power E is compact and equipped with a handle, making it easy to transport for outdoor activities like camping or road trips.
Q: Can it be used for off-grid living?
A: Absolutely, the Mango Power E is designed to provide reliable energy for off-grid living, offering the ability to store solar energy and power your home or appliances independently.
Q: How durable is the Mango Power E?
A: Built with high-quality materials, the Mango Power E is designed for durability and long-term reliability, ensuring consistent performance for both home backup and portable energy needs
Maintenance Tips
-
Storage Conditions: Store the power station in a cool, dry place. Avoid extreme temperatures as they can degrade battery life.
-
Clean Connections: Periodically clean the power ports and vents with a dry, soft cloth to prevent dust buildup and ensure proper airflow.
-
Avoid Overloading: Do not exceed the maximum output capacity when using devices to prevent damage to the unit.
-
Monitor Battery Health: Check the battery level regularly and recharge if it falls below 20%.
-
Proper Ventilation: Ensure the power station has enough airflow during use to prevent overheating, especially when charging or powering devices.
-
Long-Term Storage: If not used for an extended period, store the power station at around 50% charge to prevent battery degradation
