Morningstar Prostar Charge Controller MPPT 40A (no meter) - PS-MPPT-40

Morningstar Prostar Charge Controller MPPT 40A (no meter) - PS-MPPT-40

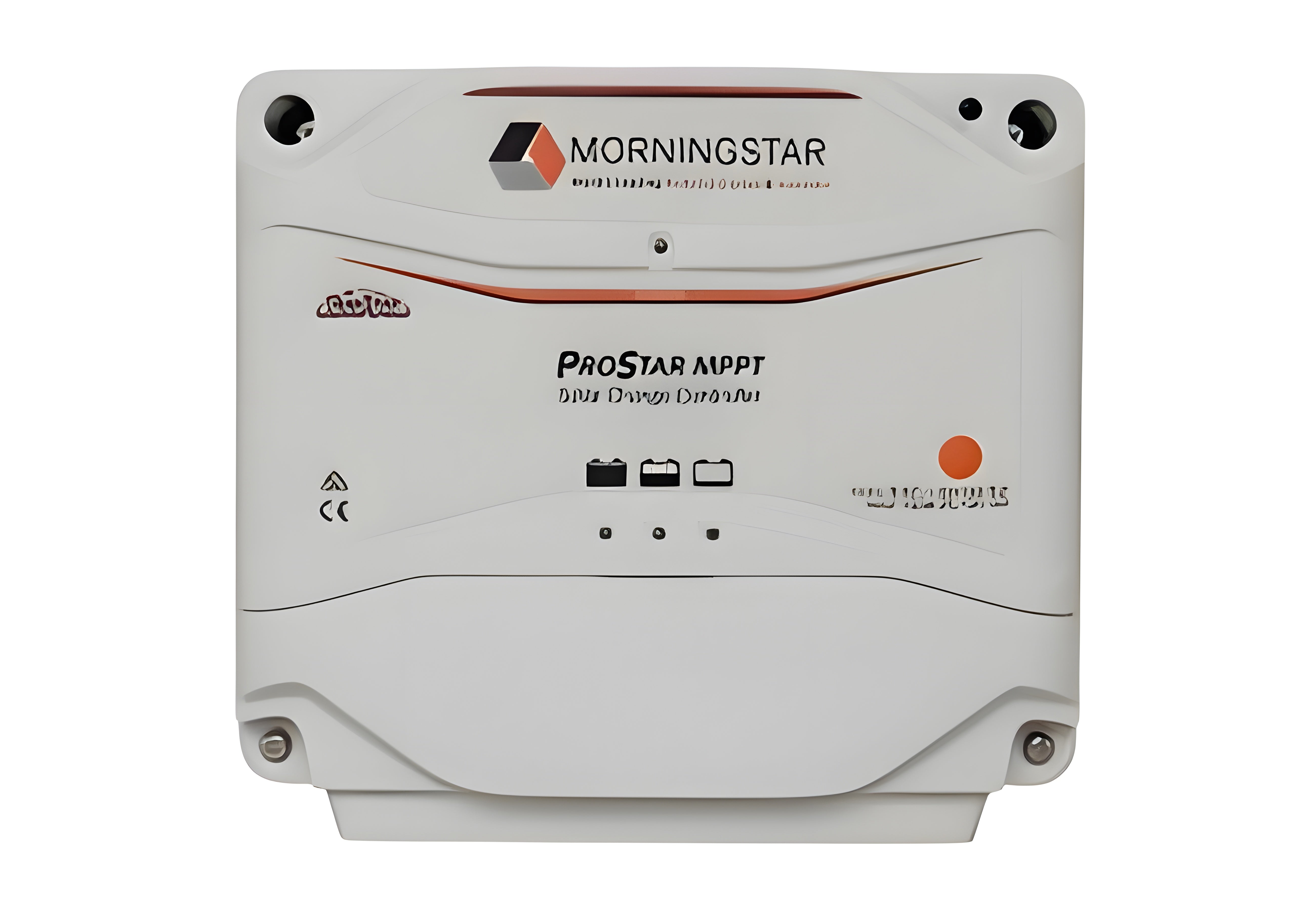

The Morningstar Prostar MPPT 40 is a 40 A 12/24 V charge controller. The Prostar MPPT solar charge controller and lighting controller with TrakStar Technology is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems. Detailed battery programming options allow for advanced battery support for the latest Lithium, Nickel Cadmium, and Lead Acid type batteries. Automatic PV based lighting control is provided out of the box. For additional information, please see spec sheet and user manual linked below.

Features

• 40 A 12/24V Charge and Lighting Controller with LVD (Low Voltage Disconnect) Option
• Nominal Max Array Power: 550 W @ 12 V , 1,100 W @ 24 V
• Battery Voltage Range 8-35 V
• Conformally coated circuit board and corrosion resistant terminals for high reliability
• MPPT technology maximizes energy harvest by adjusting to the true maximum power point as insolation changes throughout the day.
• High efficiency across low, medium and high power levels
• Detailed data logging of power and load data, 190 Days
• Low noice design meets FCC Class B specs
• Automatic PV based lighting control, multi-event load control enables powerful options for PV lighting systems and setting can easily be adjusted in the field
• Industry standard MODBUS communications protocol
• High strength poly carbonate case and extruded aluminum heatsink
• Optional Accessories Include: Remote Temp Sensor (RTS), Remote Meter (RM-1), Wire Box (PS-MPPT-WB), USB Communications Adapter (UMC-1), Meter Hub (HUB-1), Relay Drive (RD-1) (See related parts to the right)
• Five Year Warranty

What our Expect Think

Efficient MPPT Technology – The 40 Amp MPPT controller maximizes solar panel output, providing optimal energy conversion, especially in variable light conditions, to ensure your system operates at peak performance.

Ideal for Medium-Size Systems – Perfect for medium-sized solar setups requiring up to 40 amps of charge current, making it a great choice for off-grid homes, cabins, and small commercial installations.

Enhanced Battery Protection – Features advanced charging algorithms that optimize charging to extend the lifespan of your batteries, protecting them from overcharging and undercharging.

Wide Voltage Compatibility – Works with 12V, 24V, and 48V systems, offering flexibility for various solar applications and setups.

Rugged & Reliable – Built with a tough, weather-resistant design to withstand harsh outdoor conditions, ensuring long-term durability and reliable performance.

Easy Integration – Straightforward installation with clear status LEDs for monitoring system performance and simplifying troubleshooting.

Efficient Power Conversion – Reduces energy loss by optimizing power flow from your solar panels, allowing your system to run at maximum efficiency.

Cost-Effective Solution – Without the meter, this version offers a more budget-friendly option for those who need MPPT performance without the extra monitoring features.

Trusted by Professionals – Known for its dependable performance, the Prostar series is recognized for being robust, reliable, and backed by Morningstar's renowned reputation in charge controllers.

Q&A

What is MPPT and how does it work?
MPPT (Maximum Power Point Tracking) is a technology that optimizes the energy output from your solar panels by adjusting their operating voltage to the point where they produce the maximum amount of power. This is especially beneficial when sunlight levels fluctuate or are suboptimal.

Can I use this controller with lithium batteries?
Yes, the Prostar MPPT 40 is compatible with both lead-acid (flooded, AGM, gel) and lithium (LiFePO4, Li-ion) batteries, with specific charging profiles for each.

Can I monitor my solar system remotely?
Yes, the PS-MPPT-40 is equipped with an RS-232 communication port, allowing you to use an optional Remote Meter (sold separately) for real-time system monitoring.

How many solar panels can I connect?
The PS-MPPT-40 supports solar array input up to 150V, allowing you to use various solar panels in your setup. The maximum input power varies depending on your system's battery voltage (up to 1920W for 48V systems).

What is the difference between this model and others in the Prostar series?
The PS-MPPT-40 is designed for larger solar systems with its 40 Amp capacity, making it suitable for larger residential or commercial setups. Models with smaller ratings are intended for smaller off-grid systems.

Maintenance Tips

• Visual Inspection: Check for physical damage, discoloration, or burn marks.
• Connection Check: Ensure all wiring is secure and properly grounded.
• Surge Indicator: Monitor LED status; replace if no longer indicating protection.
• Environmental Protection: Install in a dry, ventilated area to prevent moisture damage.
• Routine Testing: Periodically test system functionality and replace after a major surge event.
