Morningstar Tristar Charge Controller with Meter PWM 12V-24V-48V 60 Amp - TS-60-M

Morningstar Tristar Charge Controller with Meter PWM 12V-24V-48V 60 Amp - TS-60-M

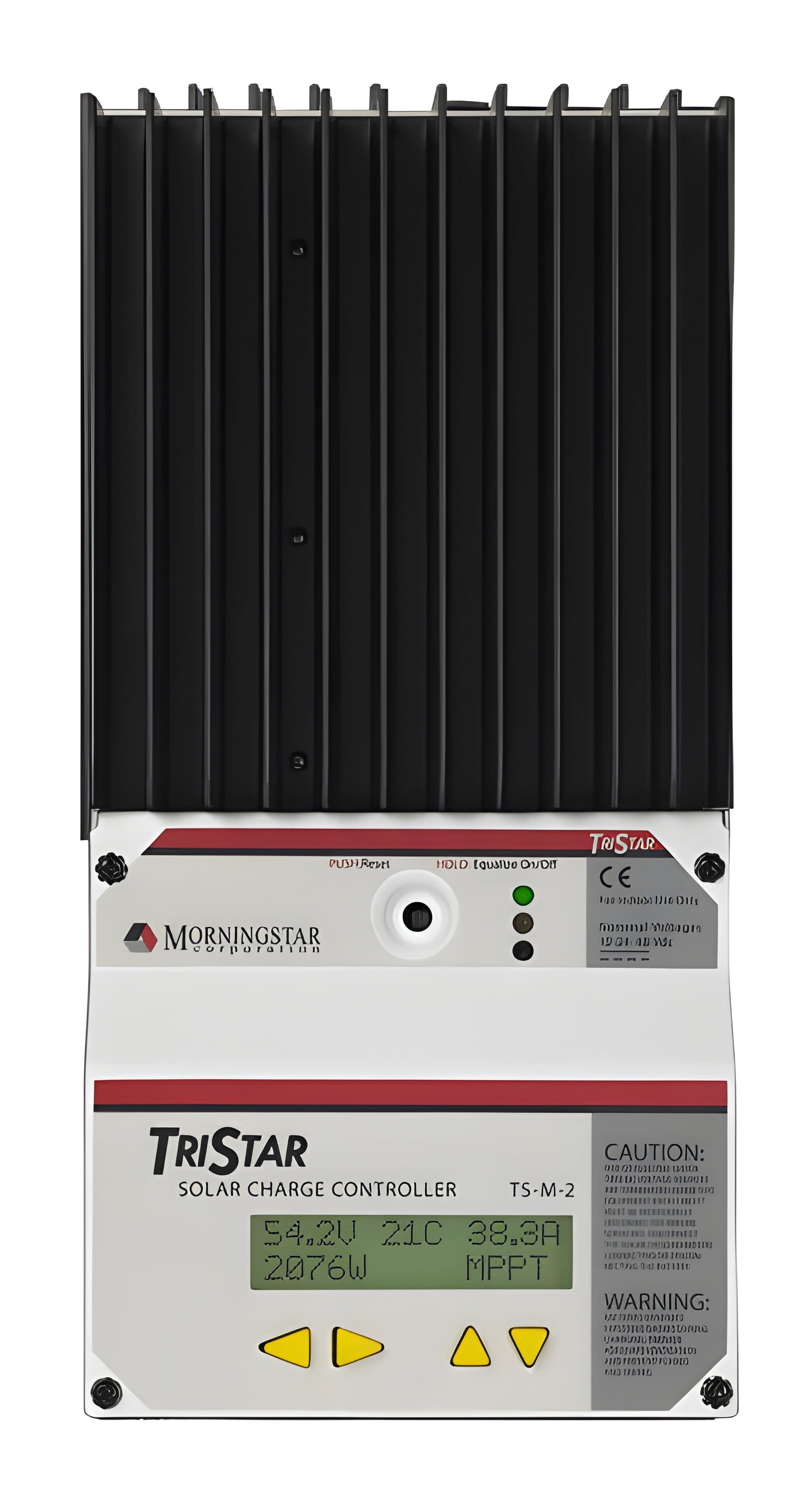

This Morningstar TriStar TS-60-M Controller is a three-function controller that provides reliable solar battery charging, load control or diversion regulation and is rated for 60A at 12, 24, or 48V. The TS-60-M operates in one of these modes at a time and two or more controllers may be used to provide multiple functions. The TriStar uses advanced technology and automated production to provide exciting new features at a competitive cost.

What our Expect Think

Reliable PWM Technology – The 60 Amp Pulse Width Modulation (PWM) charge controller provides consistent and reliable battery charging, ensuring your system performs optimally even in varying environmental conditions.

Perfect for Larger Systems – Capable of handling up to 60 amps of charge current, making it ideal for larger solar systems, such as off-grid homes, commercial solar setups, and remote installations.

Built-In Meter for Monitoring – Includes an integrated digital meter, offering real-time performance monitoring, allowing you to keep track of battery voltage, charge levels, and overall system health.

Wide Voltage Compatibility – Works with 12V, 24V, and 48V systems, offering flexibility to accommodate a variety of solar applications and configurations.

Battery Longevity Protection – Protects your batteries with advanced charging algorithms, preventing overcharging, undercharging, and deep discharging, which helps to maximize their lifespan and efficiency.

Durable and Weather-Resistant – Designed for outdoor durability, with a rugged, weather-resistant construction that ensures long-term reliability and performance under harsh conditions.

Efficient and Cost-Effective – PWM technology provides a cost-effective solution without sacrificing reliability or battery protection, making it a great option for those on a budget.

Easy Installation and Setup – Installation is straightforward with clear LED indicators and the digital meter for quick troubleshooting and system performance tracking.

Trusted Performance – Backed by Morningstar's reputation for providing high-quality, dependable charge controllers, trusted by professionals for consistent solar system management.

Q&A

What’s the difference between PWM and MPPT?
MPPT (Maximum Power Point Tracking) technology is more efficient as it adjusts the voltage from solar panels to match the battery voltage, optimizing energy harvest. PWM is simpler, controlling the voltage by reducing it to match the battery voltage, but it’s less efficient, especially under less-than-ideal sunlight conditions. However, PWM controllers are often more affordable and still highly reliable.

Can I use the Tristar TS-60-M with lithium batteries?
While the TS-60-M supports several types of batteries, lithium batteries typically require a more specific charging profile. You can use the TS-60-M with lithium batteries as long as you manually configure the settings to suit the lithium battery’s needs, but MPPT controllers are typically more suitable for lithium-based systems.

What is the maximum panel size I can use with the TS-60-M?
The maximum panel input voltage is 100V, and the controller can handle up to 60A of charging current. Depending on your panel voltage and the configuration of your system, you can pair it with a suitable array size, but you’ll need to ensure that the total wattage and panel voltage are within the limits.

How do I monitor the system remotely?
The TS-60-M is compatible with Morningstar’s remote monitoring solutions, such as the MS-RM-1 Remote Meter. This option allows you to monitor system data from a distance for more comprehensive management.

Maintenance Tips

• Visual Inspection: Check for physical damage, discoloration, or burn marks.
• Connection Check: Ensure all wiring is secure and properly grounded.
• Surge Indicator: Monitor LED status; replace if no longer indicating protection.
• Environmental Protection: Install in a dry, ventilated area to prevent moisture damage.
• Routine Testing: Periodically test system functionality and replace after a major surge event.
