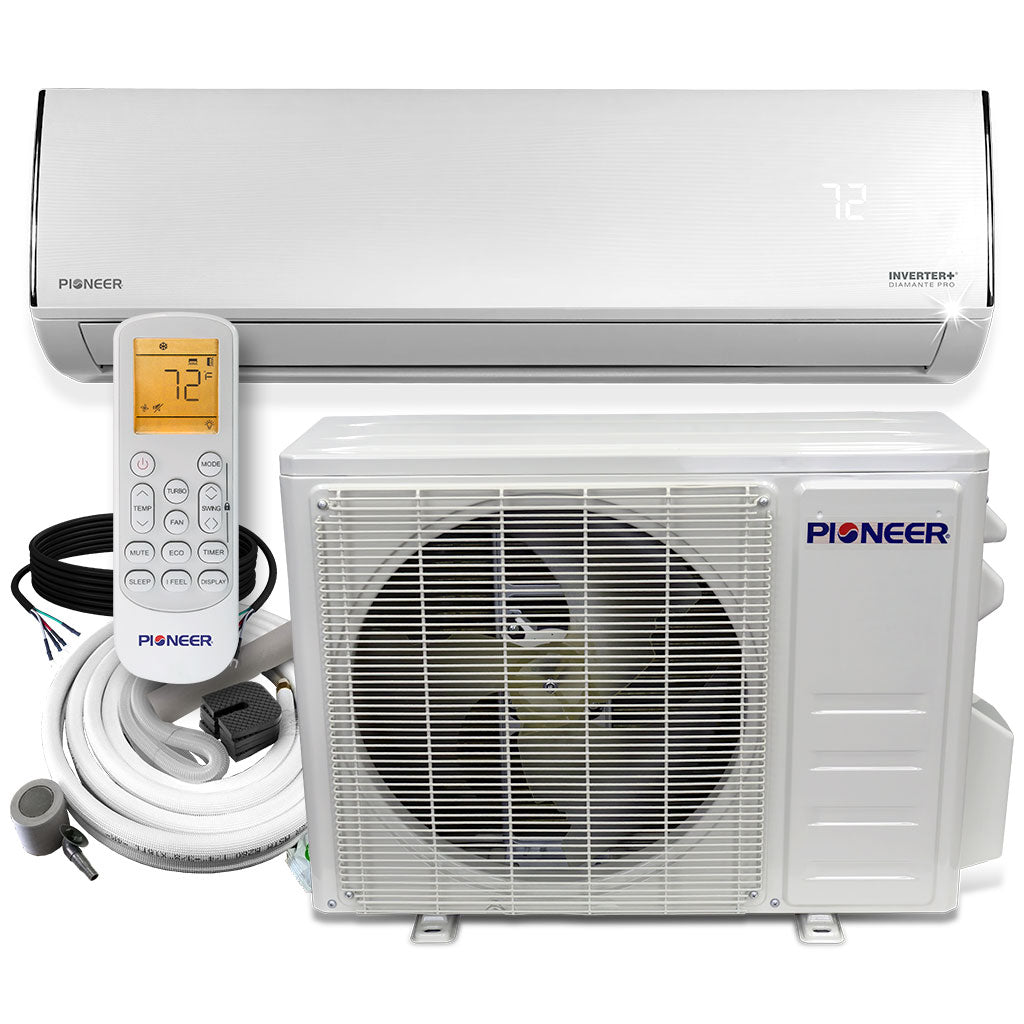

Pioneer® Diamante Pro Series 12,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 115V with 16 Ft. Kit

FREE SHIPPING
CLEARANCE SALE
80 Peoples are also watching.
SKU: WYT012ALFI19RL
$788.00
$1,069.00
$788.00
Subtotal: $788.00
clearance sale ends in
00 Hours
00 Minutes
00 Seconds
authorized dealer, shop your favorite brand.
Expert Support,

Dial +1 (888) 575-2099

Limited Supply,

grab it before it's gone.

Lowest prices,

As low as possible.

All Items are brand New,

Never used.

Popular Add-Ons

$200.00

$70.00

$100.00

$30.00

Add-Ons Bundle

$200.00

$70.00

$100.00

$30.00

Bundle Offer

$300.00

$100.00

Recently Viewed Products

Overview

Summary

  • High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
  • Cooling capacity: 12,000 BTU/H with 19 SEER2 / 10 EER2 efficiency
  • Heating capacity: 12,200 BTU/H with 8.5 HSPF2 / 3.21 COP2 efficiency
  • Voltage: 110/120V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Low Ambient Unit (-13°F)
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $79.00
    • Heating: $254.00
[[SERIES]]

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control (with wall holder and batteries)
  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Our Guarantee

  • 5 years Warranty for Parts
  • 5 years Warranty for Compressor

Features

[[FEATURES]]

Technical Information

Performance Data

  • Power Supply: 110~120V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 3,600~13,200 BTU/h
  • Cooling SEER2: 19.0 BTU/W.h
  • Cooling EER2: 10.0 BTU/W.h
  • Heating Rated Capacity: 12,200 BTU/h
  • Heating Capacity Range: 3,700~13,500 BTU/h
  • Heating HSPF2 (Region IV/V): 8.5 / 7.2 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.21 / 1.75 W/W
  • Refrigerant Type: R410A
  • Suitable Area: 200~450 Sq.F

Indoor Unit Data

  • Part Number: WT012ALFI19HLE
  • Air Flow (Hi/Med/Lo): 383 / 318 / 253 CFM
  • Sound Level (Hi/Med/Lo): 39 / 34 / 29 dB(A)
  • Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches
  • Carton Dimensions (WDH): 34-7/8  x 11 x 14-3/8 Inches
  • Net / Gross Weight: 19.8 / 26.5 lbs

Outdoor Unit Data

  • Part Number: YN012ALFI19RPE
  • Breaker Needed: 20A (single-pole)
  • Sound Level: 52 dB(A)
  • Net Dimensions (WDH): 28-1/8 x 11-1/2 x 19-5/8 Inches
  • Carton Dimensions (WDH): 33 x 13-1/4 x 21-5/8 Inches
  • Net / Gross Weight: 55 / 66.1 lbs
