Stryker MX-PRO R3 Ambulance Cot - MFI-SYK-MX-PRO-R3-600

Stryker MX-PRO R3 Ambulance Cot - MFI-SYK-MX-PRO-R3-600

The Stryker MX-PRO R3 Ambulance Cot (#6082) includes a mattress, two lap belts, one four-point shoulder restraint, and a single wheel lock standard. It also will include a free adjustable, 3-stage IV pole with purchase.

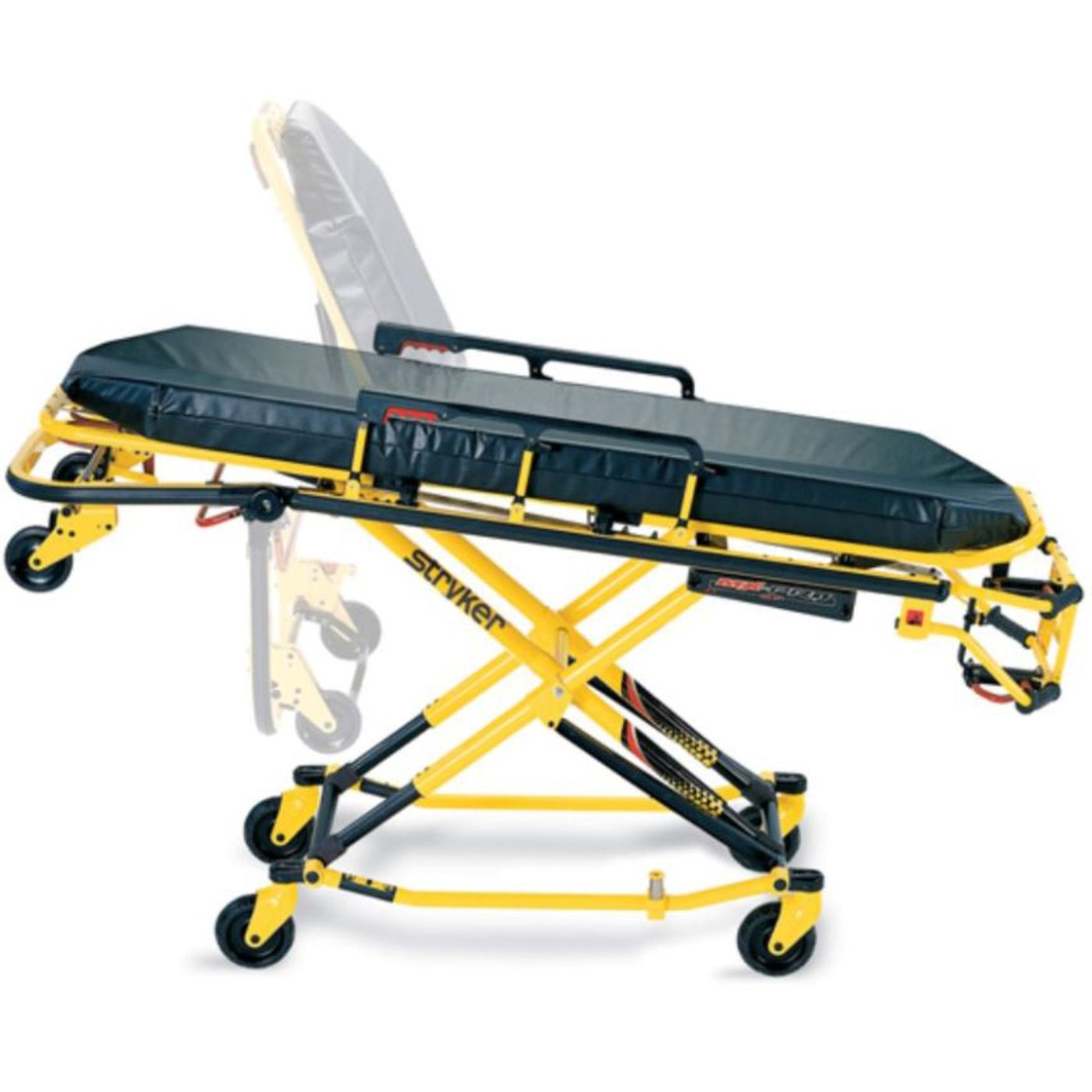

The MX-PRO R3 Ambulance Cot (X-Frame Ambulance Cot) provides many of the distinct advantages of the rugged Stryker Power-PRO's superior design and construction in a manually operated version - combining proven performance with superior ergonomics. The R3 Ambulance Gurney's lightweight and simplified controls streamline emergency transport. This cot is similar to the Stryker MX-PRO Ambulance Cot, but features an expanded maximum load capacity.

The MX-PRO R3 is compatible with the Stryker Floor Mount Models 6370, 6377, or 6378, Stryker Wall Mount Model 6371, and the Ferno 175 Fastening System.

Features

Features

• The MX-PRO R3 weighs only 81 lb, yet delivers a 650 lb load capacity (available in a 600 lb patient weight capacity as well).
• Compact, easily maneuverable, it's shortest-in-class when the breakaway head section is folded.
• Pneumatic Backrest: The advanced one-hand pneumatic backrest is a rugged innovation that ensures superior operator control and reduces manual lifting. The MX-PRO's standard one-hand release assists the operator with lifting the back of a patient to any position which also delivers maximum patient comfort.
• Easy-to-Use Release Handle: The easy-to-use release handle requires low force operation and short grip distance, especially appropriate for smaller operators.
• Fold Down Side Rails: Fold down side rails are a rugged innovation that require no additional lateral space, providing full operation in confined areas for user convenience. Their low-force operation provides security in the up position and unimpeded access to the litter in the down position.
• Break Away Head Section: The one-hand breakaway head section offers shortest-in-class dimension when folded, maximizing maneuverability in tight areas.
• Floor Mounted Safety Hook: The distinctive floor mounted safety hook design reduces the risk of cot drop incidents during the loading and unloading process.
• Lift Capable Safety Bar: The lift capable safety bar delivers handling confidence through smart design and solid construction. Dual lift points readily support a full load and accommodate operators of all heights.
• Larger Patient Surface: Stryker's standard larger patient surface easily accommodates a greater range of patient sizes, ensures optimal safety, and maximizes space between patient and provider alike.
• Automatic In-Fastener Shutoff: The innovative shutoff function automatically disables the cot when locked in the cot fastener system for exceptional, dependable safety.
• BackSmart Design: The revolutionary BackSmart design integrates innovative ergonomic features such as hydraulic lift, one-hand pneumatic backrest, and low-roll force over-sized wheels into our EMS equipment to minimize manual lifting.
• Oversized Wheels: Heavy-duty oversize rear wheels require less roll force, providing safe, secure transport in challenging emergency situations for patient and provider alike.
• Patented X-Frame Construction: Patented X-frame design defines proven performance and maximizes efficient operation for enhanced provider safety, patient comfort, and long term durability.
• Powder-Coated Frame: Tough, highly visible yellow powder coating provides an extra margin of safety and withstands repeated power washings for decontamination. The finish eliminates oxidation.
• Cot Fastener Compatibility: The MX-PRO R3 Ambulance Cot fastening system is compatible with every cot ensuring superior reliability and simplifying ambulance integration for added convenience.

Specifications

Specifications

Configurations

Configurations

• #MFI-SYK-MX-PRO-R3-600: 600 lb (272 kg) Weight Capacity.
• #MFI-SYK-MX-PRO-R3: 650 lb (295 kg) Weight Capacity.

Accessories

Accessories

The following accessories are compatible and commonly purchased with the MX-PRO R3 Ambulance Cot:

• #6082-140-000: Head End Oxygen Bottle Holder.
• #6080-216-010: MX-PRO R3 IV Pole.
• #6060-160-044: MX-PRO R3 Replacement Lap Belt.
• #6060-260-045: Shoulder Harness Restraint.
• #6082-128-010: Pocketed Head End Storage Pouch.
• Mattresses:
• #6090-041-010: Sealed Bolster Mattress.
• #6090-042-010: Sealed Flat Mattress.

Literature

Literature

Stryker 6082 MX-PRO R3 Operations/Maintenance Manual

Stryker MX-PRO R3 X-Frame Ambulance Cot Spec Sheet

What our Experts Think

• Stair-TREAD™ System: The patented track system allows a single operator to safely navigate stairs with a person weighing up to 200 lbs, ensuring a smooth descent.

• Extendable Handles: Both the head and foot end lift handles extend for better control and visibility, improving ergonomics during operation.

• Compact & Lightweight: Weighing only 34 lbs and folding to just 11 inches, this chair is easy to store and maneuver, even in tight spaces.

• Passenger Security: Equipped with restraints featuring Fastex® buckles and a secure locking mechanism to ensure the individual is safely secured during transport.

• Durable Design: Built with lightweight aluminum and power-washable materials, the chair is easy to clean and maintain, providing long-term reliability in high-use environments.

Q&A

Q: What is the Stryker Model 6254 Evacuation Chair?
The Stryker Model 6254 Evacuation Chair is a manually operated evacuation chair designed to safely transport individuals down stairs. It features a patented Stair-TREAD™ system, allowing a single operator to evacuate persons weighing up to 200 lbs (90 kg) on stairs, while two operators are recommended for individuals up to 500 lbs (227 kg).

Q: How is the Stryker Model 6254 Evacuation Chair maintained?
The chair is designed for easy maintenance with power-washable components and grease-free mechanisms, ensuring quick cleaning and minimal downtime.

Q: Where can I purchase the Stryker Model 6254 Evacuation Chair?
The Stryker Model 6254 Evacuation Chair is available through authorized medical equipment suppliers. It's recommended to contact local distributors for availability and pricing.

Maintenance Tips

• Routine Cleaning: Use mild soap and water. Avoid abrasive cleaners or solvents that may damage surfaces.

• Disinfection: Follow standard facility infection control protocols after each use.

Preventive Maintenance

• Inspection Frequency:

• 1–25 uses/month: Inspect every 6 months

• 26–200 uses/month: Inspect every 3 months

• Over 200 uses/month: Inspect monthly

• What to Check:

• All fasteners, welds, and joints for signs of wear or looseness

• Bent or damaged frames or components

• Functionality of siderails, backrest, leg mechanism, and safety bar

• Smooth and secure wheel function

• Integrity of mattress and restraints
