The Stryker Power-PRO XT Ambulance Cot includes a brake, two lap belts, one four-point shoulder restraint, mattress, and an adjustable, 3-stage IV pole.

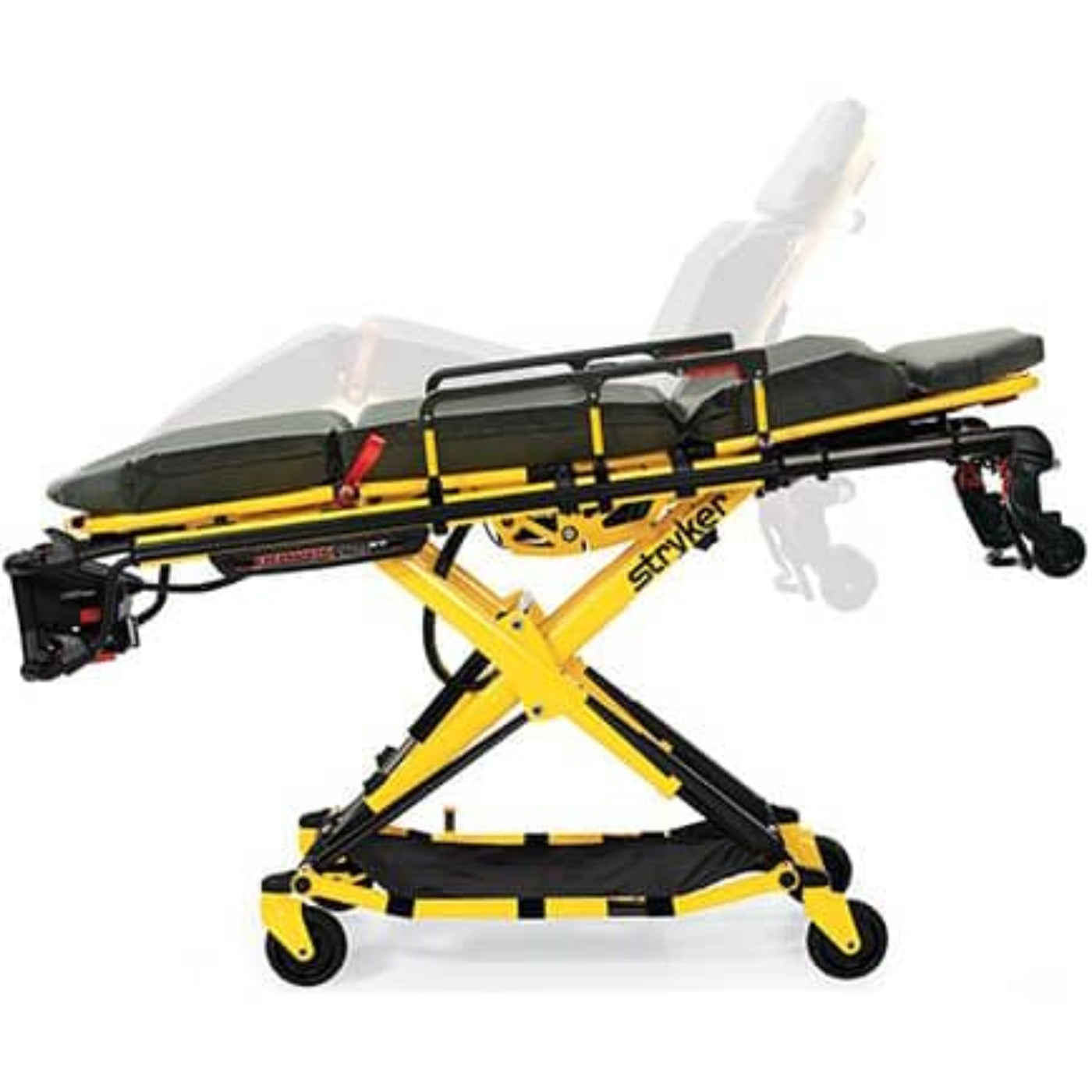

The Power-PRO XT is a powered wheeled stretcher intended to support and transport the entire body of a patient (includes infants and adults) with an innovative battery-powered hydraulic system that raises and lowers the patient with the touch of a button. It consists of a platform mounted on a wheeled X-frame designed to support and transport a maximum of 700 lb (318 kg) in pre-hospital and hospital environments. It is collapsible for use in emergency vehicles and has an adjustable load height feature to allow the device to be set to different ambulance deck heights for proper body mechanics during loading and unloading.

The NiCd battery-powered hydraulic lift system allows operators to raise and lower the cot using the powered controls, while duplicate foot-end controls on the upper and lower bars accommodate different operator positions or sizes. It is also equipped with a manual back-up release handle to allow the operation of cot functions in the event of power loss.

Features

Features

• Reducing Physical Effort: The industry-leading Power-PRO XT powered ambulance cot dramatically reduces strenuous lifting. Medics experience frequent loading due to repetitive motions. Use of the Power-PRO XT has proven to reduce physical effort, resulting in improved comfort, increased recruitment and retention.
• Powered Hydraulics: The innovative battery powered hydraulic system raises and lowers patients with the touch of a button. The Stryker Power-PRO XT sets the standard for superior performance and outstanding ergonomics.
• Power Loss Back-Up: Easy to use manual back-up system provides complete cot operation in the event of power loss.
• Easily Accessible Battery: Foot end mounted battery is accessible and easily changed in any situation.
• Retractable Head Section: Allows cot to be shortened in any height position for maximum versatility.
• High-Speed Retract: Exclusive automatic high speed retract feature reduces load and unload times.

Specifications

Specifications

Configurations

Configurations Configurations

• #MFI-SYK-6500: Model 6500 - Standard (No Knee Gatch, XPS, or Compatibility Kit).
• #MFI-SYK-6500-GATCH: Model 6500 with Knee Gatch.
• #MFI-SYK-STR6500PRFL: Model 6500 with Performance-LOAD Compatibility Kit.
• #MFI-SYK-STR6500PWRL: Model 6500 with Power-LOAD Compatibility Kit.

#MFI-SYK-6500-XPS: Model 6500 with Expandable Patient Surface (XPS).

• #MFI-SYK-STR6500XPSPRFL: Model 6500 with Expandable Patient Surface (XPS) and Performance-LOAD Compatibility Kit.
• #MFI-SYK-STR6500XPSPWRL: Model 6500 with Expandable Patient Surface (XPS) and Power-LOAD Compatibility Kit.
• #MFI-SYK-6506: Model 6506 - Standard (No Knee Gatch, XPS, or Compatibility Kit).
• #MFI-SYK-6506-GATCH: Model 6506 with Knee Gatch.

Accessories

Accessories

The following accessories are compatible and commonly purchased alongside the Power-PRO XT Ambulance Cot:

• #6500-001-027: Stryker In-Fastener Shut-Off Assembly.
• #6500-033-000: Stryker SMRT Power System.
• #6500-700-049: 6500 Power-LOAD Compatibility Kit - Allows the 6500 stretcher to work with the Power-LOAD Cot Fastener System (#6390), which improves operator and patient safety by supporting the stretcher throughout the loading and unloading process. It assists with moving the stretcher into and out of the ambulance, reducing physical effort.
• #6500-700-065: 6500 Performance-LOAD Compatibility Kit - Allows the 6500 cot to be seamlessly placed into the ambulance, keeping it secured when in motion, and straightening the cot during loading and unloading.
• #6506-700-001: 6500/6506 Power-LOAD Compatibility Kit - Allows the 6500 or 6506 stretcher to work with the Power-LOAD Cot Fastener System (#6390), which improves operator and patient safety by supporting the stretcher throughout the loading and unloading process. It assists with moving the stretcher into and out of the ambulance, reducing physical effort.
• #6506-700-002: 6500/6506 Performance-LOAD Compatibility Kit - Allows the 6500 or 6506 cot to be seamlessly placed into the ambulance, keeping it secured when in motion, and straightening the cot during loading and unloading.
• #MFI-SYK-REPLACEMENT-BATTERY: Stryker Power-PRO XT Ambulance Cot Replacement Battery (Not compatible with SMRT Chargers).
• #MFI-SYK-REPLACEMENT-CHARGER: Stryker Power-PRO XT Ambulance Cot Replacement Battery Charger (Not compatible with SMRT Batteries).
• Expandable Patient Surface (XPS): Increases patient surface area and reduces the patient transfer gap. Designed with your patient's safety and comfort in mind.

Literature

Literature

Stryker Emergency Care Catalog

Stryker Powered Loading System Brochure

Stryker 6506 Power-PRO XT Cot Operations Manual

Stryker Power-PRO XT 6506 Specs Sheet

Stryker Power-PRO XT Brochure

What our Experts Think

• Effortless Operation: The Stryker Power-PRO XT Ambulance Cot features a battery-powered hydraulic lift, making it easy to raise and lower patients with just the push of a button, reducing the physical effort on medical personnel.

• Height Flexibility: With an adjustable height range of 14" to 41.5" (36 to 105 cm), this cot can be tailored to fit various ambulance decks and optimize the mechanics of loading and unloading patients.

• Reliable in Emergencies: The manual backup system ensures full functionality even in the event of power failure, providing peace of mind during critical situations.

• Heavy-Duty Capacity: Designed to support up to 700 lbs (318 kg), the cot accommodates a wide range of patients, ensuring safe transport in emergency medical settings.

• Ergonomic Design: The cot is built with a lightweight aluminum X-frame, fold-down siderails, and an easy one-hand release backrest for added convenience and ease of use.

Q&A

Q: What is the Stryker Power-PRO XT Ambulance Cot (Model 6500)?
The Stryker Power-PRO XT Ambulance Cot is a powered stretcher designed for emergency medical services to safely transport patients. It features a battery-powered hydraulic system that allows for easy height adjustment, reducing physical effort on the operator.

Q: How does the Power-PRO XT enhance operator safety and efficiency?
The Power-PRO XT reduces manual lifting, minimizing physical effort on emergency responders and decreasing the risk of discomfort. This leads to safer operations and enhanced efficiency in patient transport.

Q: Where can I purchase the Stryker Power-PRO XT Ambulance Cot?
The Stryker Power-PRO XT Ambulance Cot is available through authorized medical equipment suppliers and distributors.

Maintenance Tips

• Regular Cleaning: Wipe down cot surfaces with a disinfectant to maintain hygiene and prevent buildup.

• Check Battery: Inspect the battery regularly for signs of wear. Charge fully before use.

• Lubricate Moving Parts: Apply lubricant to joints and hinges to ensure smooth operation.

• Inspect Hydraulic System: Test the hydraulic lift mechanism to ensure proper function. Check for leaks.

• Check Straps and Restraints: Inspect for wear and tear, ensuring they are secure and functional.

• Monitor Weight Limit: Ensure the cot is not overloaded beyond the recommended weight capacity.
