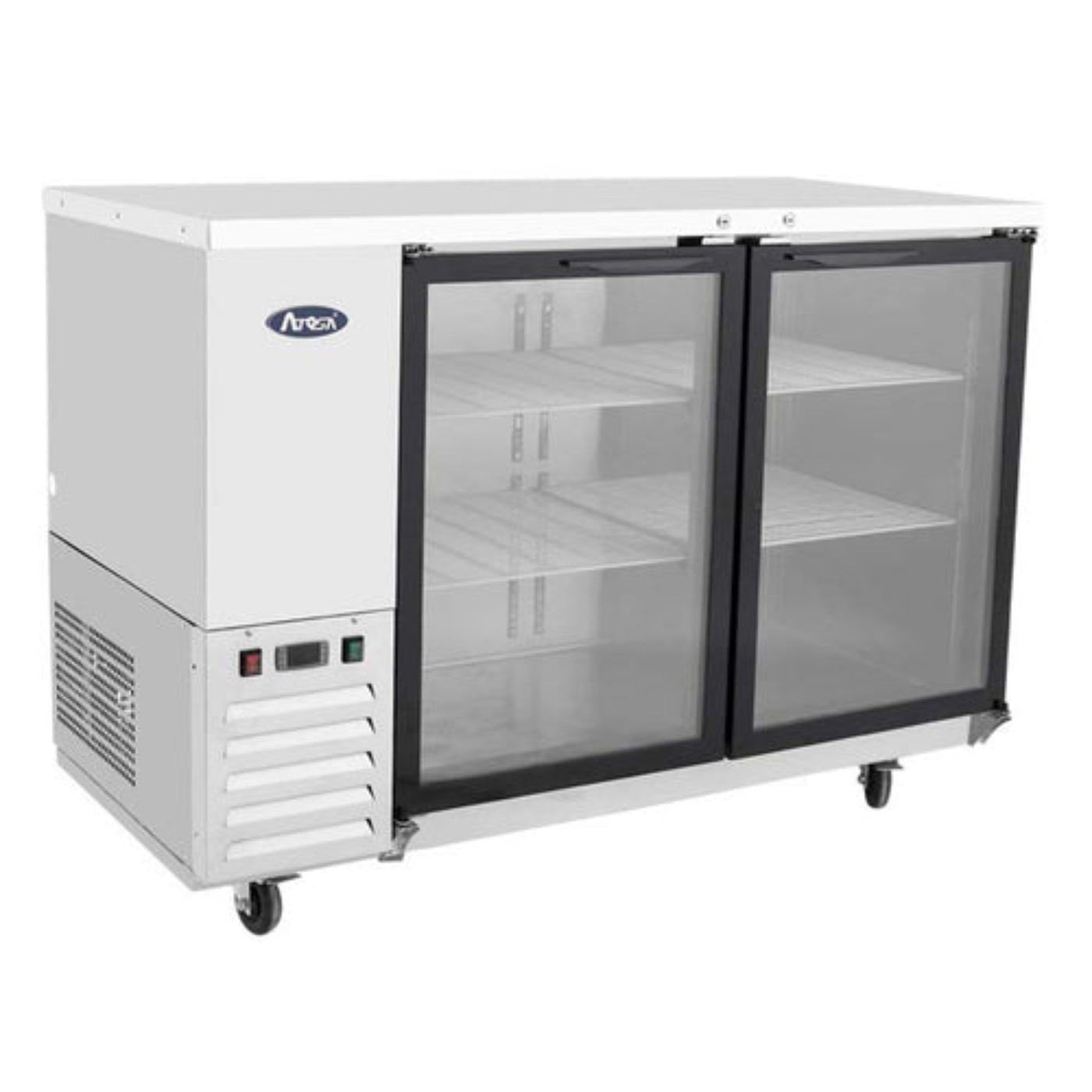

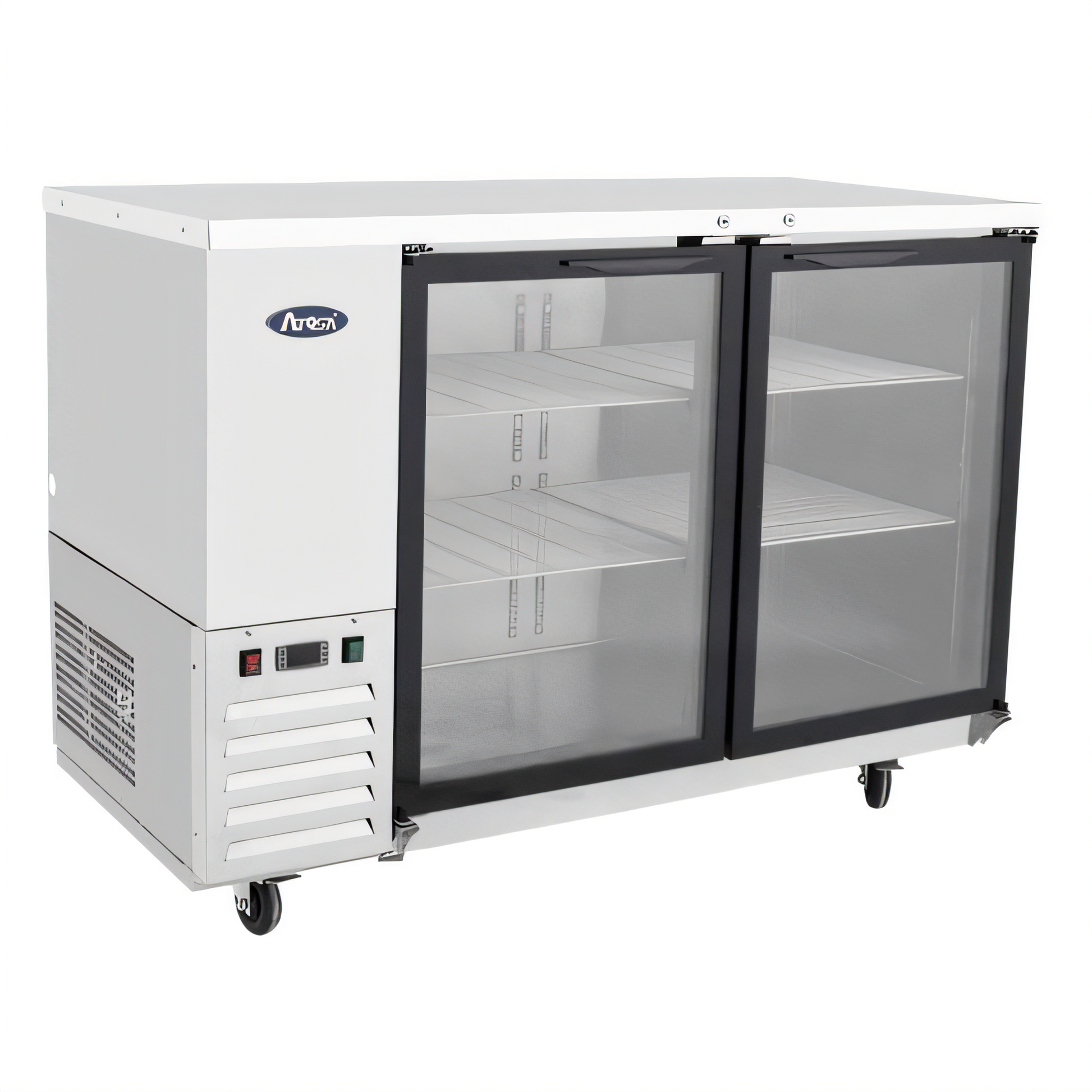

Atosa USA, Inc. SBB48GGRAUS1 Atosa Back Bar Coolers
Atosa Back Bar Cooler, shallow depth, two-section, 48"W x 24-1/2"D x 40-1/8"H, self-contained side mount refrigeration, 11.5 cu. ft. capacity, (2) locking glass doors, stainless steel top, digital temperature control, (4) epoxy coated shelves, stainless steel interior & exterior, 2" casters, R290 Hydrocarbon refrigerant, 1/7 HP, 115v/60/1-ph, 2.3 amps, cord with NEMA 5-15P, cETLus, ETL-Sanitation
Specifications
| Manufacturer |
Atosa USA, Inc. |
| Brand Name |
Atosa |
| Certifications |
cETLus, ETL-Sanitation |
| Height |
40.13 in |
| Width |
48.0 in |
| Depth |
24.5 in |
| Refrigeration Location |
Self-contained, side mounted |
| Width (Side-to-Side) |
23 – 58 inches |
| Depth (Front-to-Back) |
22 – 26 inches |
| Door Quantity |
2 doors |
| Door Type |
Glass door(s) |
| Door Swing |
Swing door(s) |
| Top Finish |
Stainless steel top |
| Exterior Finish |
Stainless steel exterior |
| Specifications |
Atosa Back Bar Cooler, shallow depth, two-section, 48"W x 24-1/2"D x 40-1/8"H, self-contained side mount refrigeration, 11.5 cu. ft. capacity, (2) locking glass doors, stainless steel top, digital temperature control, (4) epoxy coated shelves, stainless steel interior & exterior, 2" casters, R290 Hydrocarbon refrigerant, 1/7 HP, 115v/60/1-ph, 2.3 amps, cord with NEMA 5-15P, cETLus, ETL-Sanitation |
Drawings
Documents
What our Experts Think
-
Consistent Temperature Control: Keeps beverages at an optimal 33°F to 40°F, ensuring freshness and quality.
-
Energy-Efficient: Uses a heavy-duty compressor with R290 refrigerant, offering energy savings and quieter operation.
-
User-Friendly Design: Self-closing glass doors with an automatic stay-open feature and secure magnetic gaskets.
-
Enhanced Visibility: LED lighting inside ensures easy access and visibility of stored items.
-
Durable Construction: Made from stainless steel, it is built to withstand the demands of high-traffic environments.
-
Low Maintenance: The slide-out compressor makes servicing easy, promoting long-lasting performance.
Q&A
Q: What is the Atosa SBB48GGRAUS1 Back Bar Cooler?
A: The Atosa SBB48GGRAUS1 is a 48-inch shallow-depth back bar cooler, featuring two glass doors and 11.5 cubic feet of storage space, perfect for chilling and displaying beverages in commercial settings.
Q: What are the key features of this cooler?
A: This model is equipped with a stainless steel exterior and interior, LED lighting, four epoxy-coated shelves, a bottom-mounted compressor, and pre-installed casters for easy mobility.
Q: What is the temperature range and refrigerant used?
A: The cooler maintains a temperature range of 33°F to 40°F and uses environmentally friendly R290 refrigerant for optimal energy efficiency.
Q: Is the Atosa SBB48GGRAUS1 Energy Star certified?
A: Yes, it is Energy Star certified, ensuring energy efficiency and helping to reduce operating costs.
Maintenance Tips
-
Regular Cleaning: Wipe down the stainless steel surfaces and glass doors to remove fingerprints and spills. Clean the interior shelves and floor to prevent buildup.
-
Maintain Door Gaskets: Inspect and clean the magnetic door gaskets to ensure a tight seal, preventing cold air loss and improving energy efficiency.
-
Monitor Temperature: Use the electronic temperature controller to maintain temperatures between 33°F and 40°F for optimal storage conditions.
-
Clean Condenser Coils: Periodically clean the condenser coils to remove dust and debris, which can affect cooling performance.
-
Check Drainage: Ensure the drainage system is clear to prevent water accumulation inside the unit.
-
Defrost Regularly: If frost buildup occurs, defrost the unit to maintain efficient operation.
-
Professional Servicing: Schedule annual maintenance with a qualified technician to ensure the compressor and refrigerant system are functioning properly.
