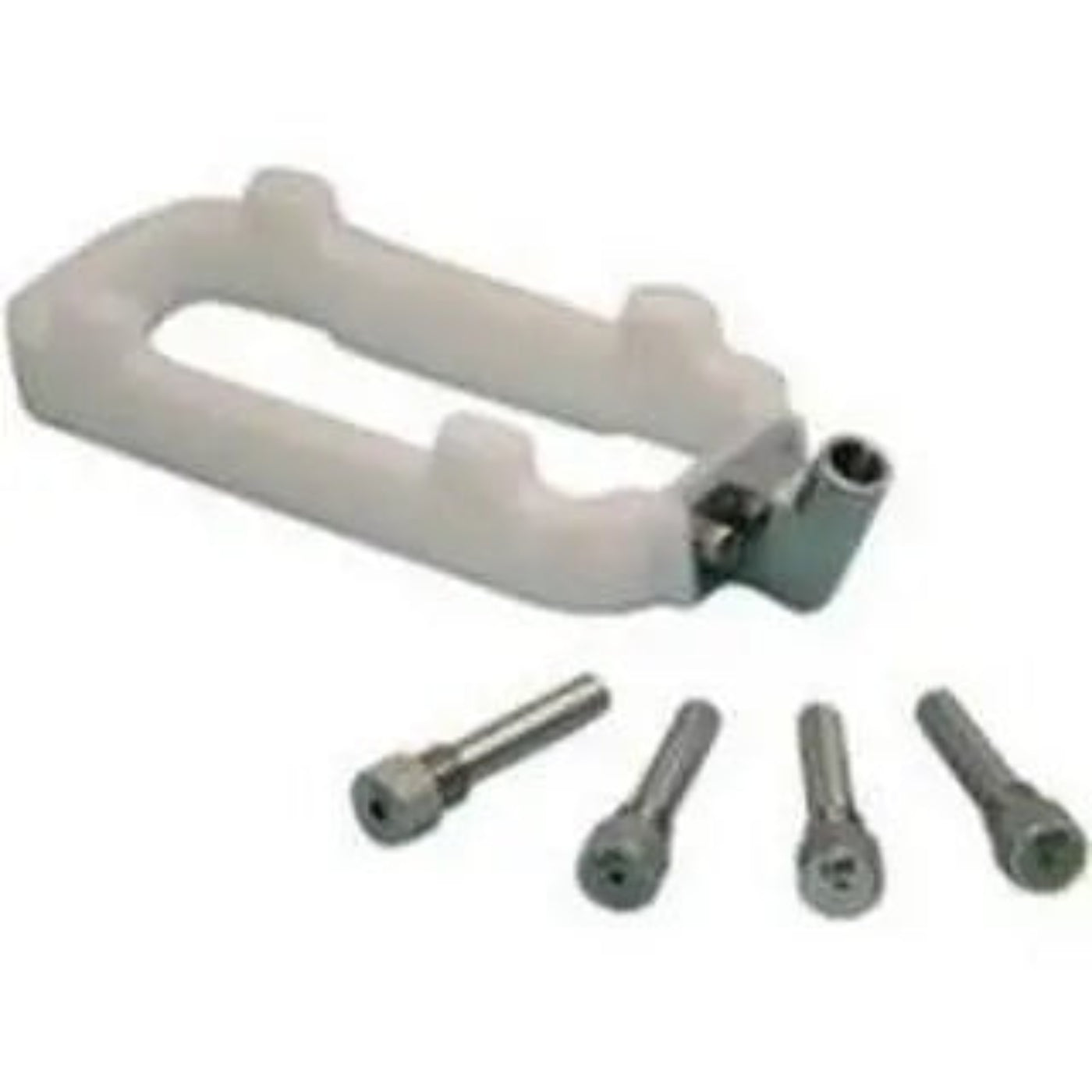

Edan Convex Array Transducer C36 Needle Guide Bracket - EDN-02-01-102338-12
The Edan Convex Array Transducer C36 Needle Guide Bracket (#02.01.102338-12 / BGK-CR60) is designed for use with the Convex Transducer C362UA, Convex Transducer C363UA, and DUS 60 Digital Ultrasonic Diagnostic Imaging System (#DUS60).
The versatile needle guide bracket is also compatible with previous models, such as the Convex Array Transducer C361-1 (#12.01.102388) and Convex Array Transducer C363-1 (#12.01.19518).
What our Experts Think
-
Precision Support: Designed to fit the Edan C36 Convex Array Transducer, this needle guide bracket enhances accuracy during ultrasound-guided procedures.
-
Optimized Needle Alignment: Keeps the needle steady and aligned with the ultrasound beam for improved visualization and safer puncture paths.
-
Durable, Medical-Grade Build: Constructed for long-term use and easy sterilization, maintaining reliability in clinical environments.
-
Quick Attachment: Simple, secure fitting allows fast setup and minimal workflow disruption.
-
Ideal for Interventional Imaging: Excellent choice for biopsies, drainages, and other precision-guided applications requiring consistent performance.
Q&A
Q: What is the Edan EDN-02-01-102338-12?
A: A needle guide bracket designed for the Edan C36 convex array ultrasound transducer.
Q: What is its purpose?
A: Provides stable and accurate needle placement during ultrasound-guided procedures.
Q: Is it compatible with other probes?
A: Specifically designed to fit the Edan C36 transducer for precise alignment.
Q: Why use a needle guide bracket?
A: Enhances procedural accuracy, safety, and consistency in diagnostic or interventional imaging.
Q: Where is it commonly used?
A: Ideal for hospitals, clinics, and imaging centers performing guided biopsies or injections.
Maintenance Tips
-
Clean after every use using a soft cloth dampened with approved disinfectant—avoid harsh chemicals or abrasive materials.
-
Do not autoclave or immerse the needle guide bracket in liquid; follow Edan’s recommended cleaning procedure for delicate accessories.
-
Inspect the bracket regularly for cracks, loose fittings, or wear that may affect alignment and needle precision.
-
Store in a protective case when not in use to prevent dust accumulation or accidental damage.
-
Ensure proper attachment to the C36 convex array transducer before each procedure for accurate guidance and stability.
-
Calibrate alignment periodically to maintain precise needle trajectory during ultrasound-guided interventions.
-
Avoid excessive force when attaching or removing the bracket to preserve the locking mechanism.
-
Verify compatibility with sterilization agents and other accessories used in your clinical workflow.
