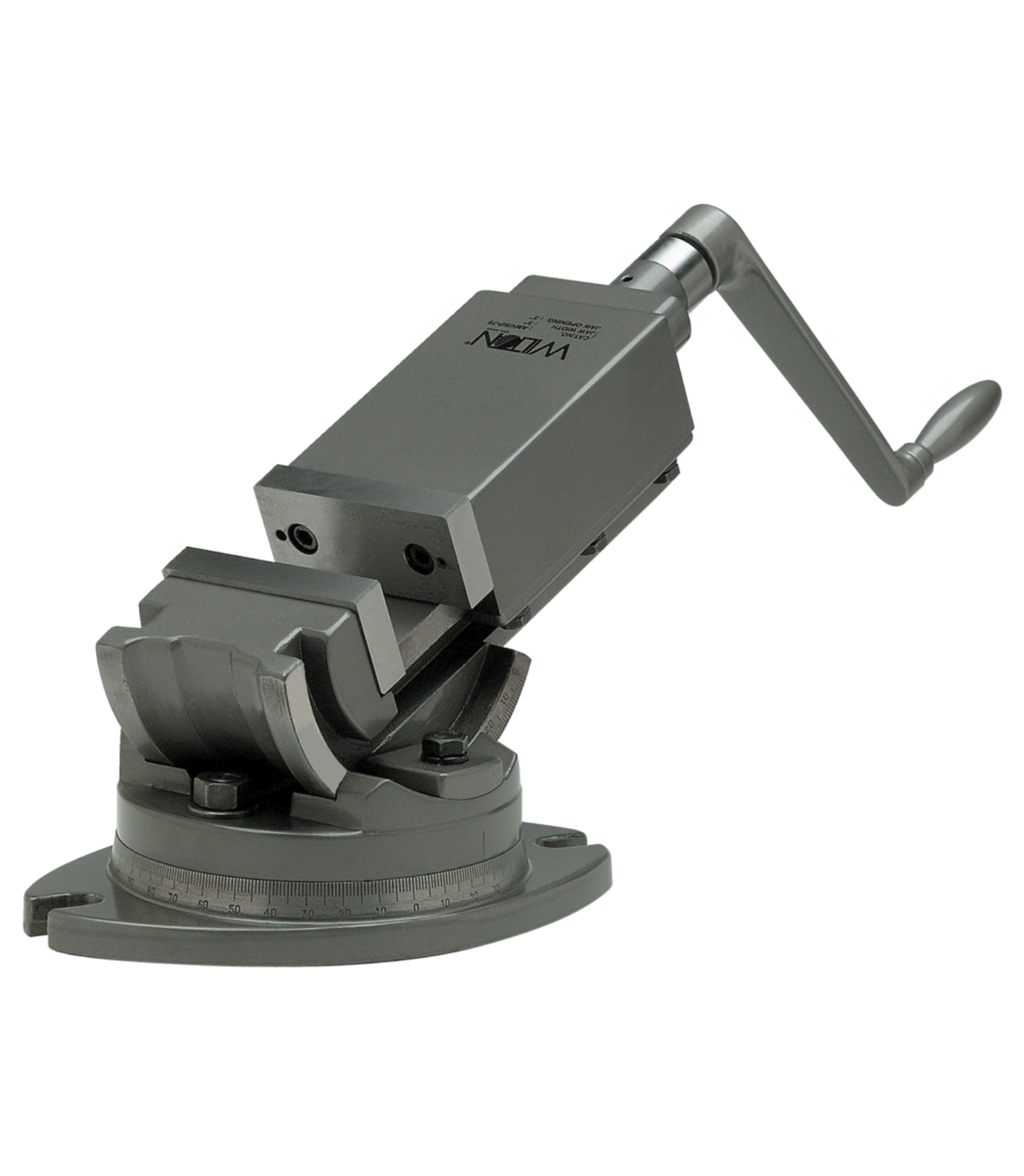

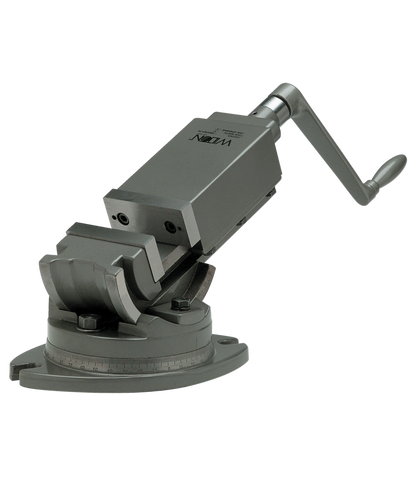

WILTON 5" 2-Axis Precision Angular Vise - WL9-11706
Wilton's line of 2 Axis Machine Vises are perfect for applications that require machining on an angle. These high precision vises are constructed of close grained, high tensile alloy castings. All boast 90 degree vertical and 180 degree horizontal indexing, 360 degree swivel base, and 90 degree tilting range, all backed by
Features
- 180 deg Horizontal indexing.
- 360° swivel base.
- 90° vertical and 180° horizontal indexing.
- All ground surfaces made to close tolerances.
- Bases have keyways and bolt slots for machine mounting.
- Hardness of jaws is 55 ± 3 HRC.
- Jaw plates hardened and ground.
- Perfect vise for applications where the workpiece requires machining on an angle.
- Perfectly indexed for angular work.
- Relief in the clamp seat ensures complete surface contact providing firm locking at any angle.
Specifications
| Jaw Depth |
1-3/4" |
| Jaw Width |
5" |
What our Experts Think
-
Engineered for Angular Precision: Built specifically for machining at custom angles, this 2‑axis vise supports 90° vertical and 180° horizontal indexing plus a 90° tilting range, giving machinists precise control for complex setups.
-
Heavy‑Duty, Accurate Construction: Close‑grained, high‑tensile alloy castings with ground surfaces and hardened jaws (55 ± 3 HRC) deliver durability and consistent gripping performance.
-
360° Swivel Base: The swivel base lets you rotate workpieces smoothly on the machine table for quick orientation and setup.
-
Firm Lock at Any Angle: Special relief design in the clamp seat ensures full contact and secure locking when tilted, even under heavy loads.
-
Ergonomic & Machine‑Ready: Steel handle with spring‑loaded ball attachment enhances ease of use, and base keyways/bolt slots make mounting on machine tables or workstations simple.
Q&A
Q: What is this precision angular vise used for?
A: It securely holds workpieces at adjustable angles for drilling, milling, and machining operations.
Q: What does 2-axis capability mean?
A: The vise tilts on two axes, allowing precise positioning and angular adjustments for complex tasks.
Q: What is the jaw width of this vise?
A: The vise features a 5-inch jaw width for stable, firm clamping of medium-sized materials.
Q: Is this vise suitable for professional use?
A: Yes, it is built for machinists, workshops, and precision engineering applications.
Q: What material is the vise made from?
A: It is constructed from heavy-duty, durable metal for long-lasting performance.
Q: Can it be mounted on a machine table?
A: Yes, it is designed for secure mounting on drill presses, milling machines, and workbenches.
Maintenance Tips
-
Clean jaws, slides, and angular surfaces after each use to remove debris.
-
Lightly lubricate lead screws and swivel/tilt mechanisms for smooth operation.
-
Keep surfaces dry to prevent rust and maintain precision.
-
Avoid overtightening to protect alignment and accuracy.
-
Store in a dry location; apply light rust inhibitor if unused for long periods.
